Osiris · Extenders
HDBaseT extenders for USB-C, HDMI and USB. Uncompressed video, audio, USB, control and power over a single category cable, at 40, 70 or 100 m.
Uncompressed
Nothing lost on the way.
Video, audio, USB, control and power travel together over one category cable.
Flexible
USB-C, HDMI or USB.
Pick the connection the room needs at each end.
Tidy
Power over the cable.
PoC on many models means one fewer power supply behind the screen.
Distance selector
Coming soon
Osiris 5K. Four units. Mix and match.
Four interchangeable transmitters and receivers for USB-C and HDMI, including our first USB-C output device. 40 m at 4K, 35 m at 5K, USB 3.2 Gen 1 throughout.
Choose your extender
| Model | Video | Charging / power | USB | Reach |
|---|---|---|---|---|

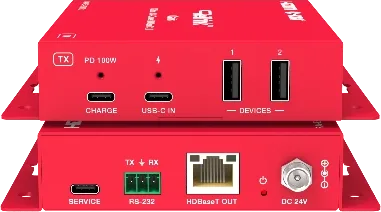

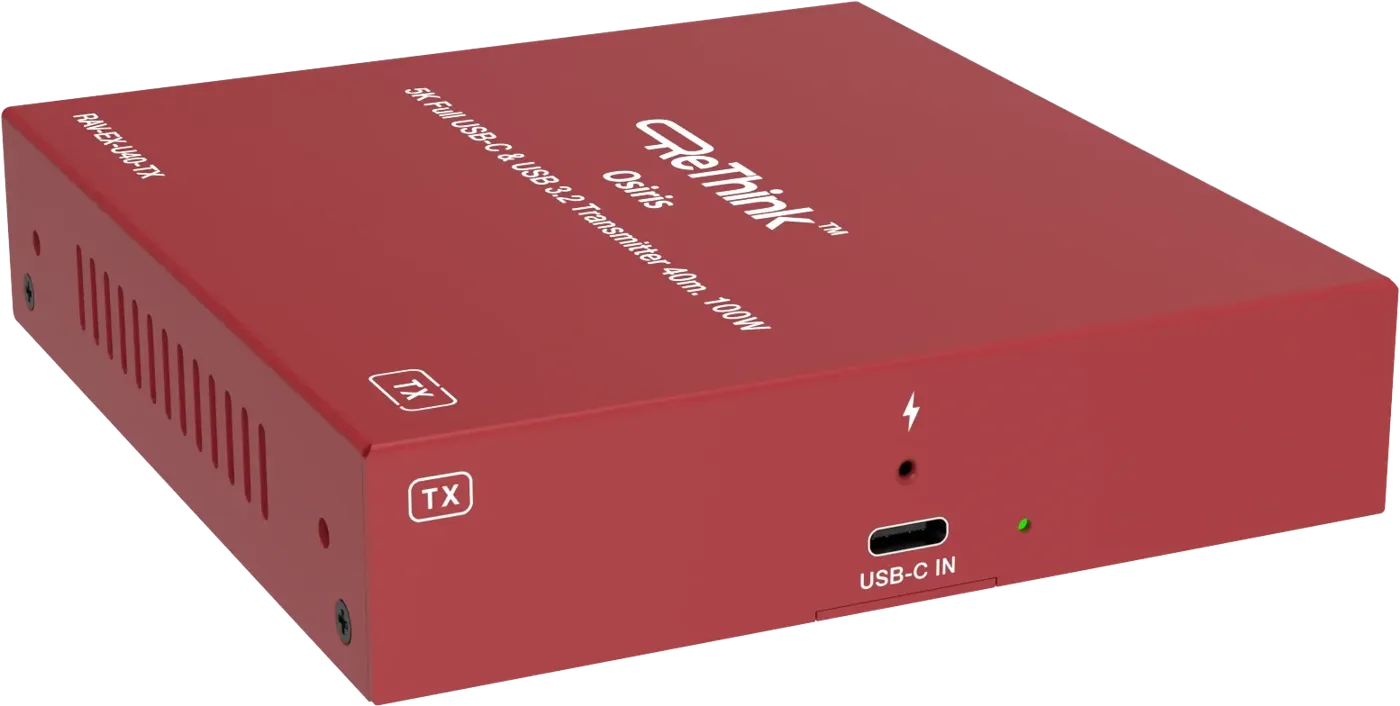

| RAV-EX-U40-Tx5K USB-C and USB 3.2 transmitter | 5K | 100 W | USB 3.2 Gen 1 | 40 m |

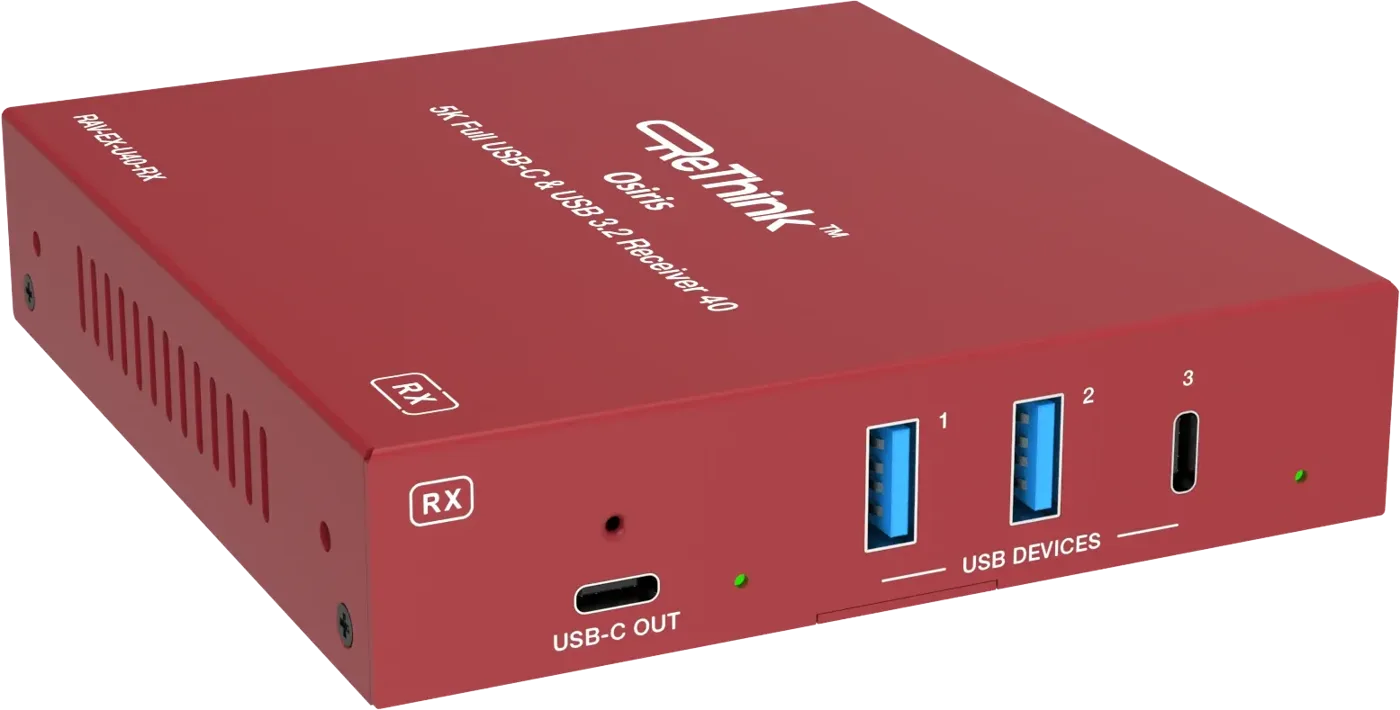

 RAV-EX-U40-Rx5K USB-C and USB 3.2 receiver with USB-C output | 5K | — | USB 3.2 Gen 1 | 40 m |

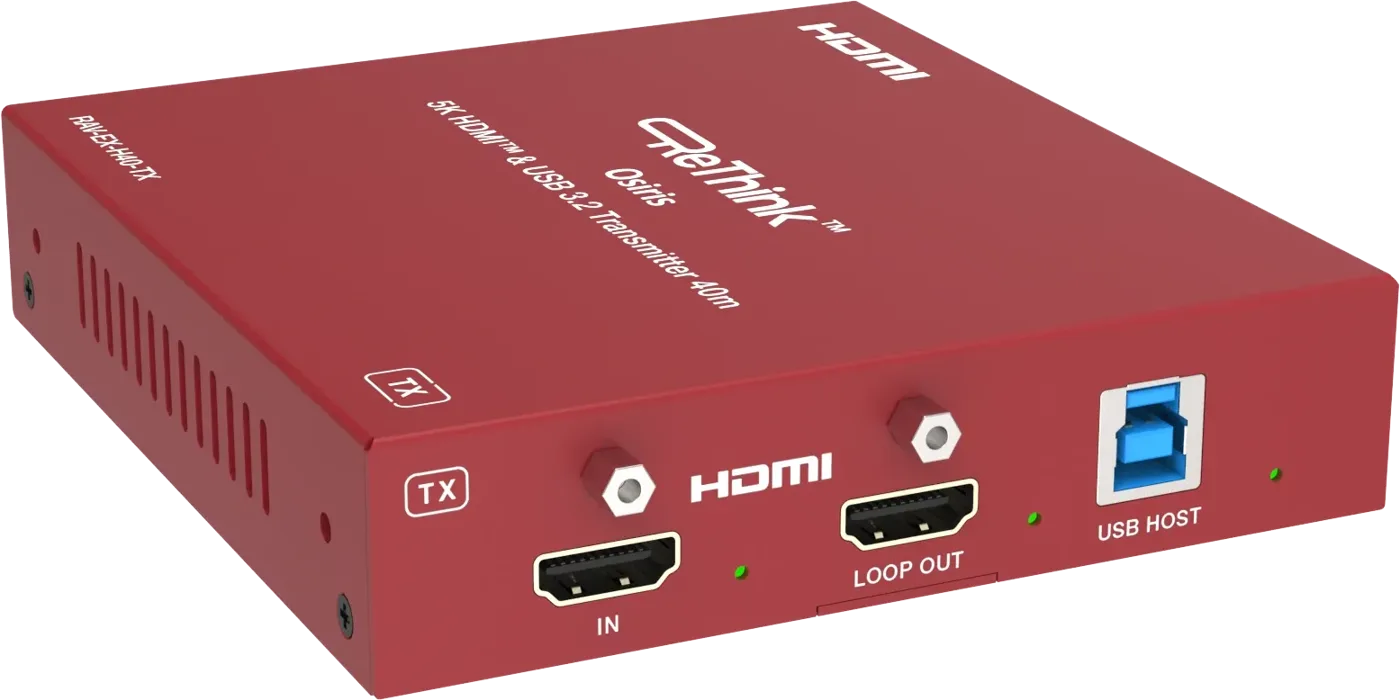

 RAV-EX-H40-Tx5K HDMI and USB 3.2 transmitter | 5K | — | USB 3.2 Gen 1 | 40 m |

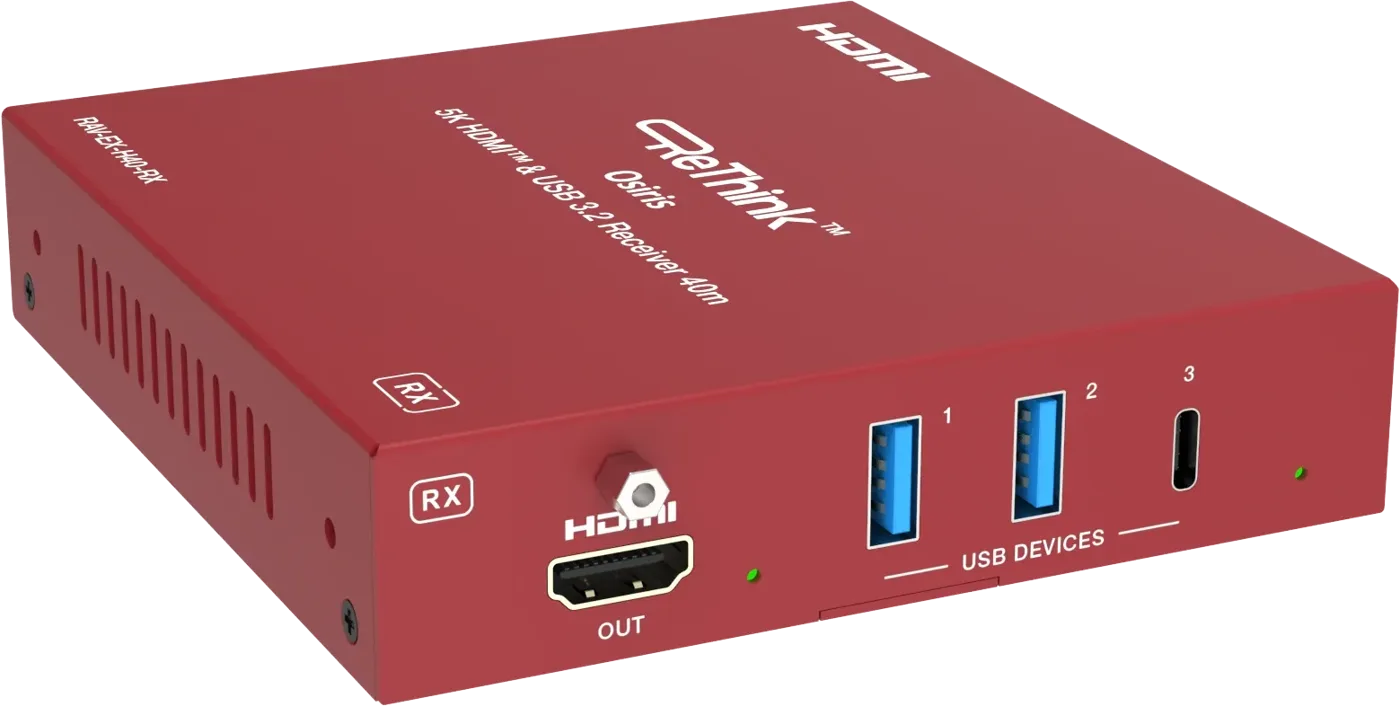

 RAV-EX-H40-Rx5K HDMI and USB 3.2 receiver | 5K HDMI out | — | USB 3.2 Gen 1 | 40 m |

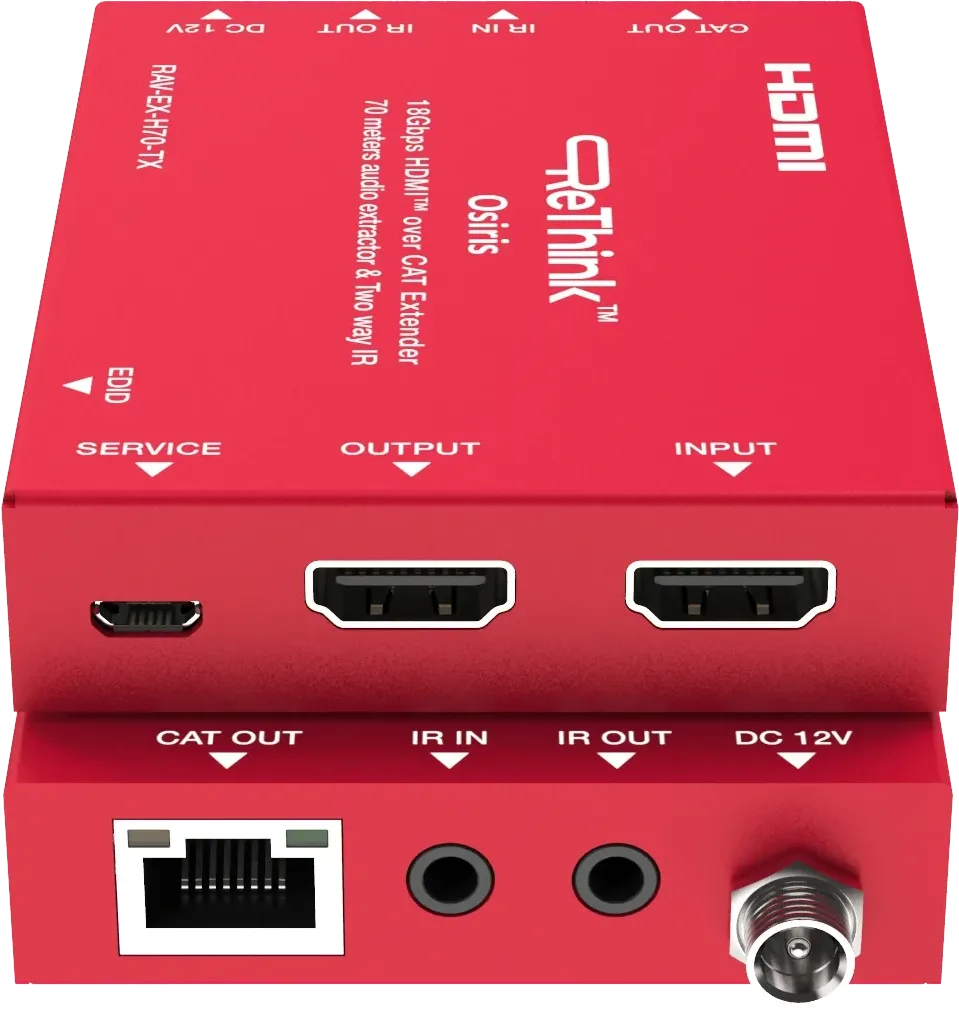

 RAV-EX-H70-Tx/RxHDMI extender kit over HDBaseT | 4K60 4:4:4 | — | — | 70 m |
 RAV-EX-U70-Tx/RxUSB-C video and USB 2.0 extender kit | 4K60 4:4:4 to 40 m | — | USB 2.0 | 70 m |

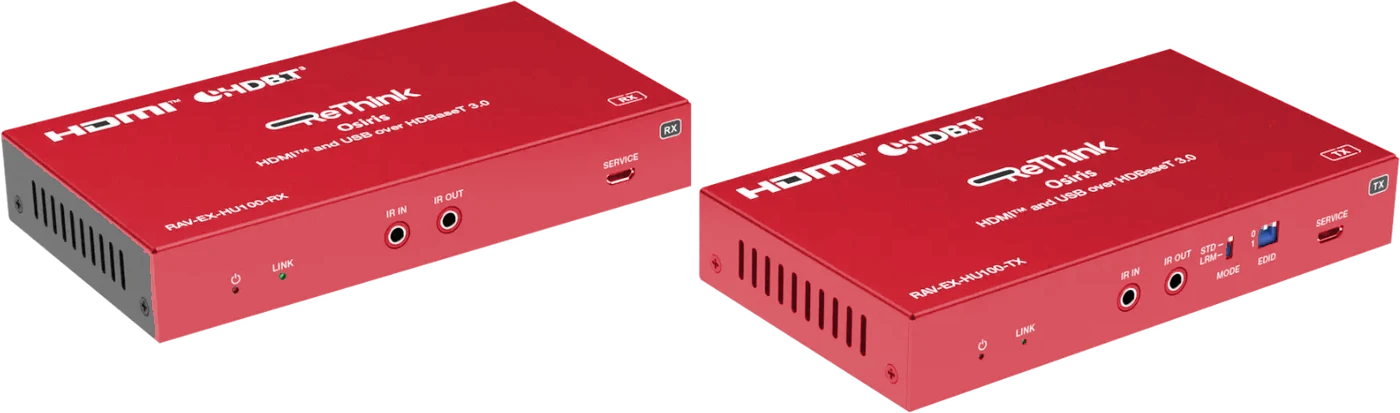

 RAV-EX-HU100-Tx/RxHDMI and USB extender kit over HDBaseT 3.0 | 4K60 4:4:4 | — | USB 2.0 | 100 m |

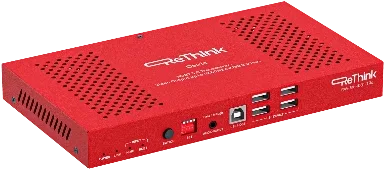

 RAV-EX-HDBT-TRxHDBaseT transceiver with USB 2.0 | 4K | — | USB 2.0 | 100 m |

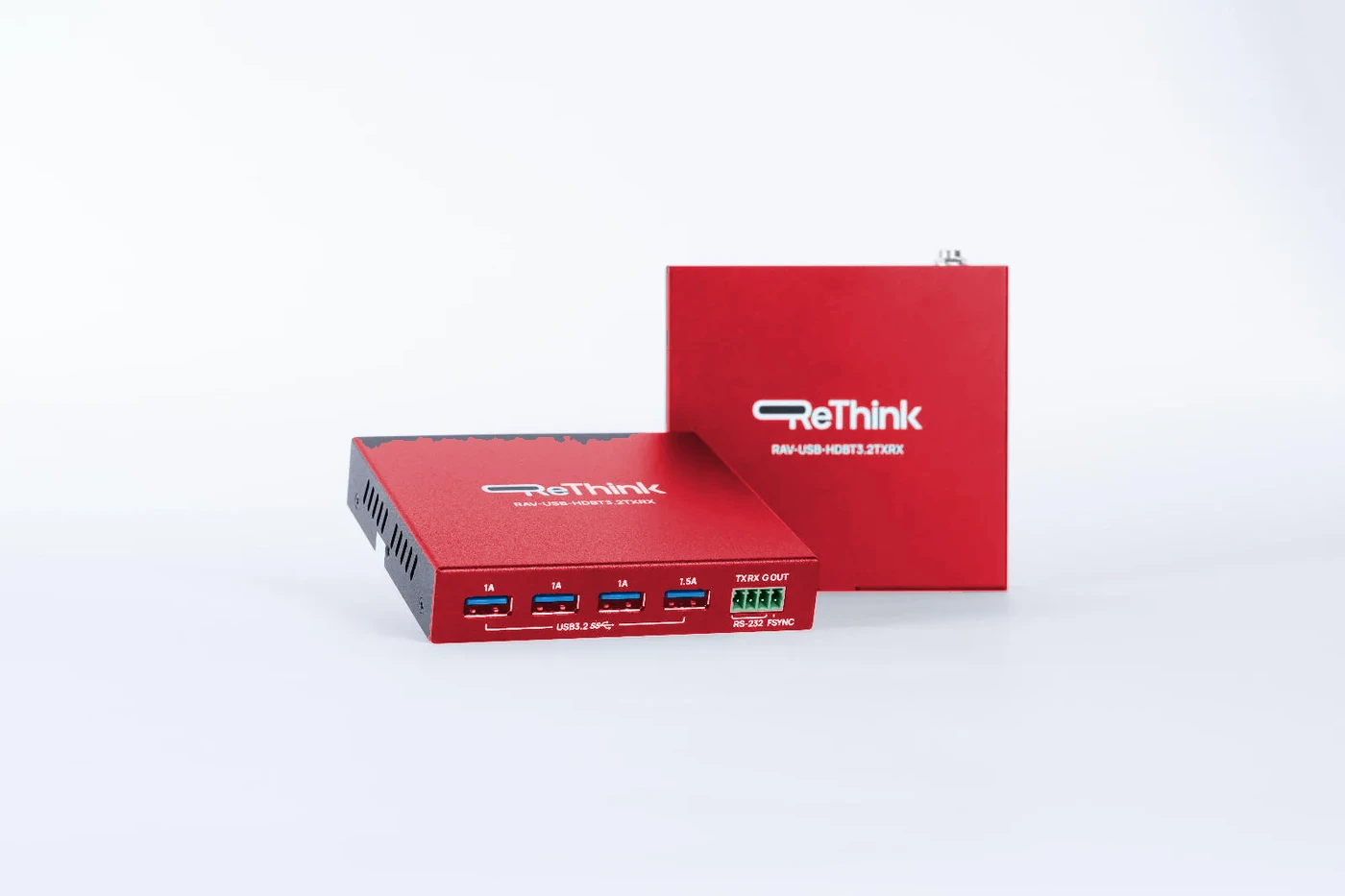

 RAV-EX-UA100-Tx/RxUSB 3.2 extender kit with four USB-A ports | — | — | USB 3.2 Gen 1 5 Gbps | 100 m |

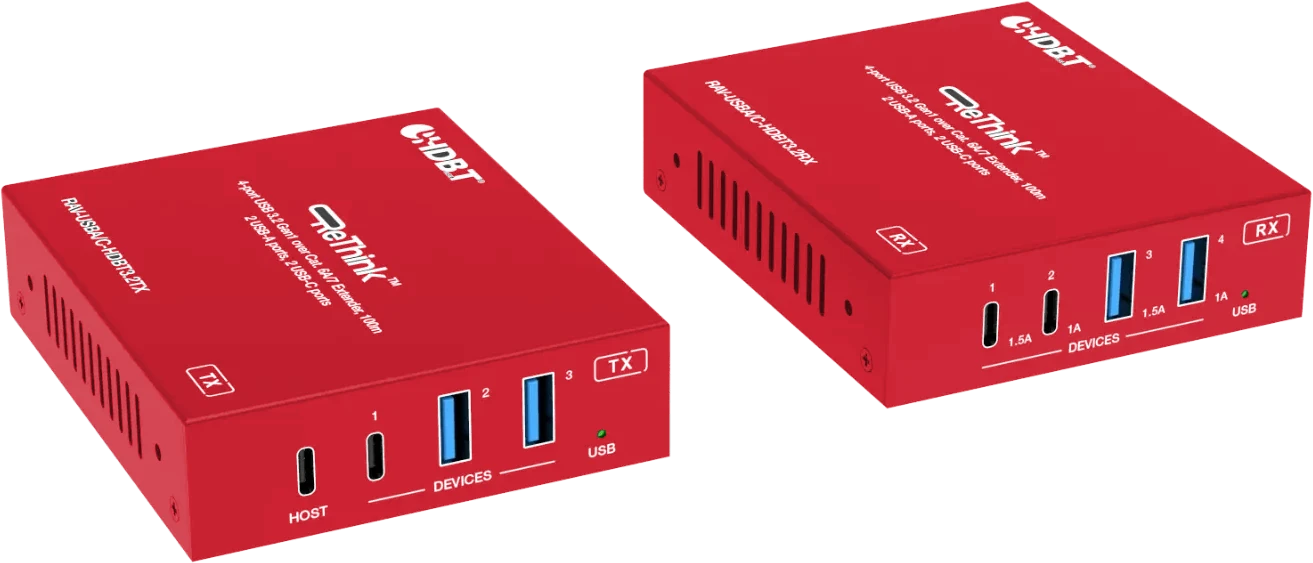

 RAV-EX-UAC100-Tx/RxUSB 3.2 extender kit with USB-A and USB-C ports | — | — | USB 3.2 Gen 1 5 Gbps | 100 m |
