Extend HDMI signals with ease using the RAV-EX-H70-Tx/Rx. This Rethink AV HDMI Extender is capable of sending 4K60 4:4:4 video and multi-channel audio up to 70 metres.. Designed for professional setups, it offers HDCP compliance, IR transmission and PoC (power over cable) with a plug-and-play integration in a compact design.
RAV-EX-H70-TxRx HDMI Extender over HDBaseT is a reliable and cost-effective solution for extending high-definition video and audio signals over long distances. Designed for professional AV setups, this extender supports resolutions up to 4K UHD and transmits signals up to 60 metres via a single Cat 6 cable, ensuring minimal signal loss and maximum performance.
It features HDCP compliance and plug-and-play functionality, making it easy to integrate into existing systems. Compact, simple and robust, it is ideal for conference rooms, classrooms, and other environments requiring seamless AV signal transmission.
Supplied with IR Blaster, IR Wideband Receiver and mounting brackets.

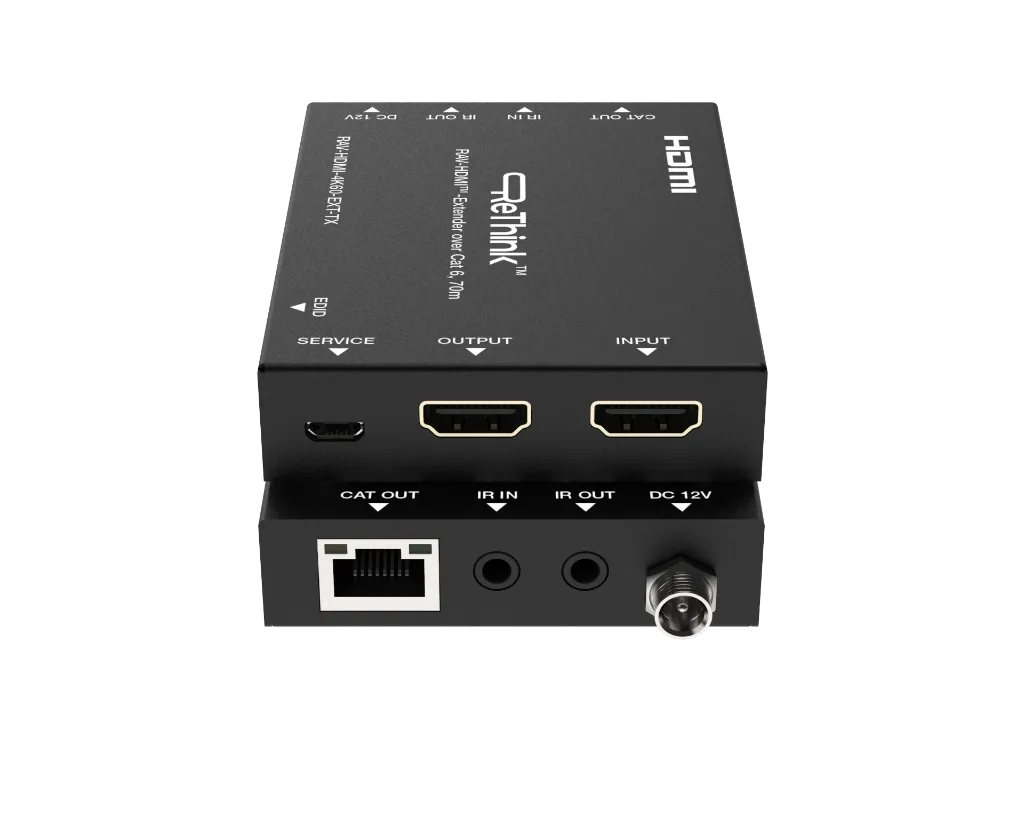

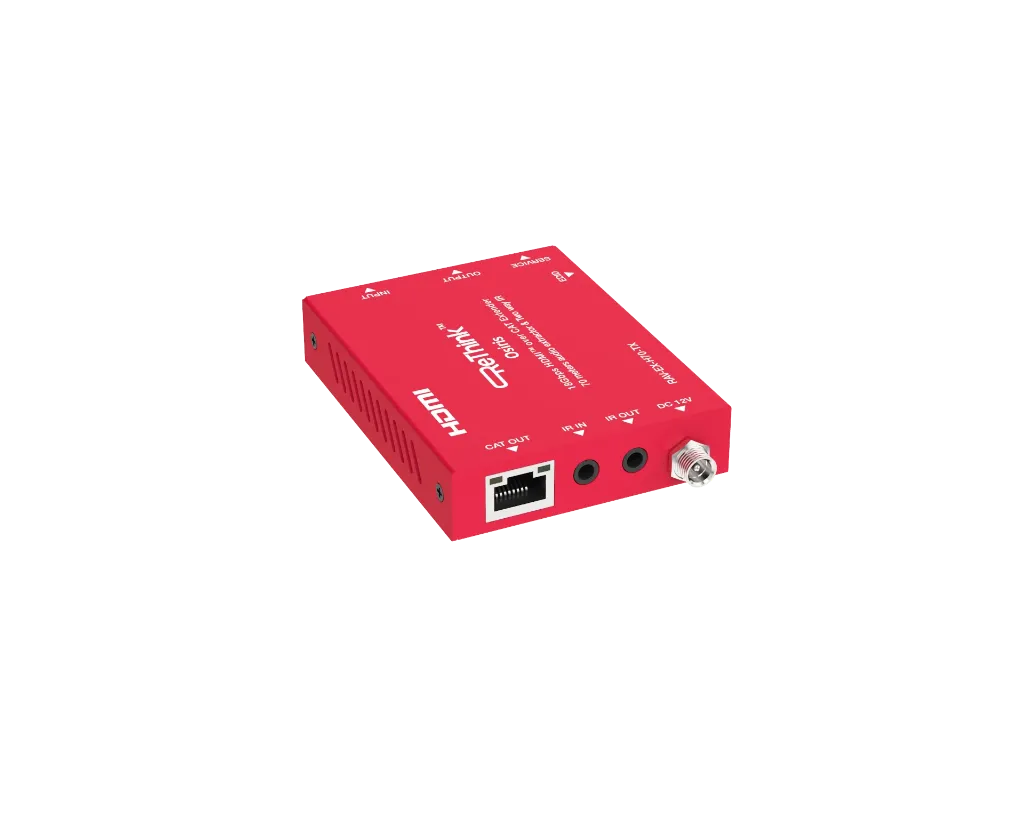

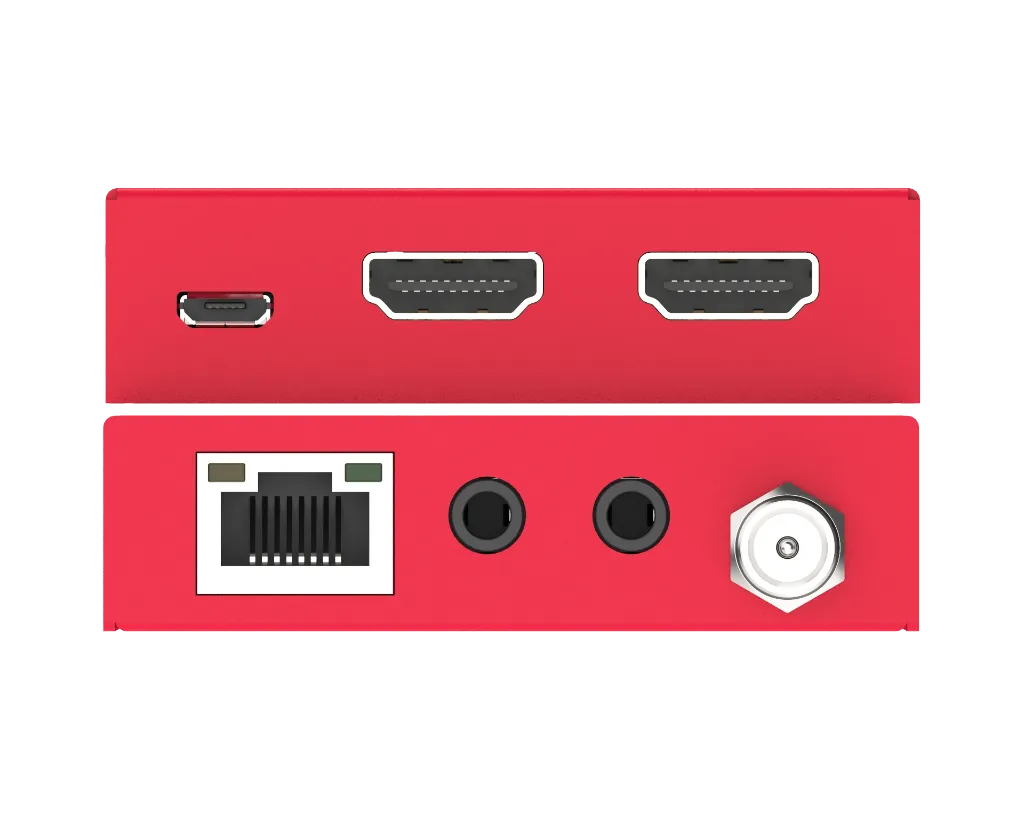

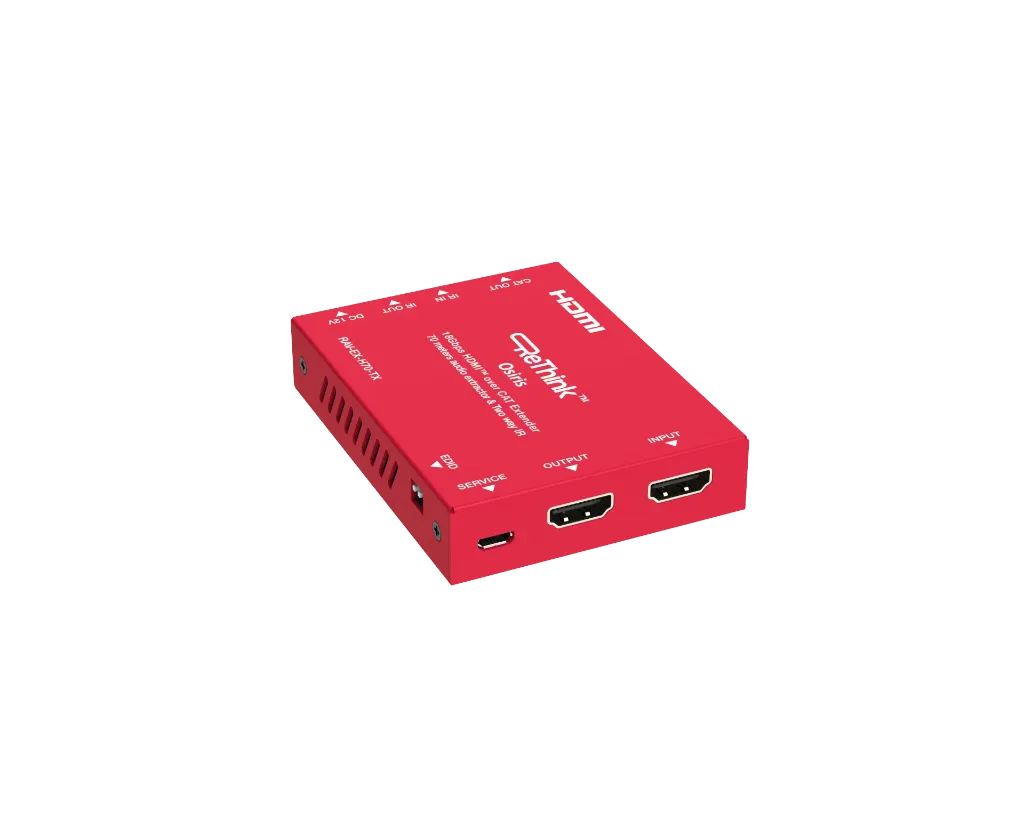

| Transmitter: | 1x HDMI Input. 1x IR Input. 1x HDMI Output (Loop), 1x HDBT Output, 1x IR Output. |
|---|---|

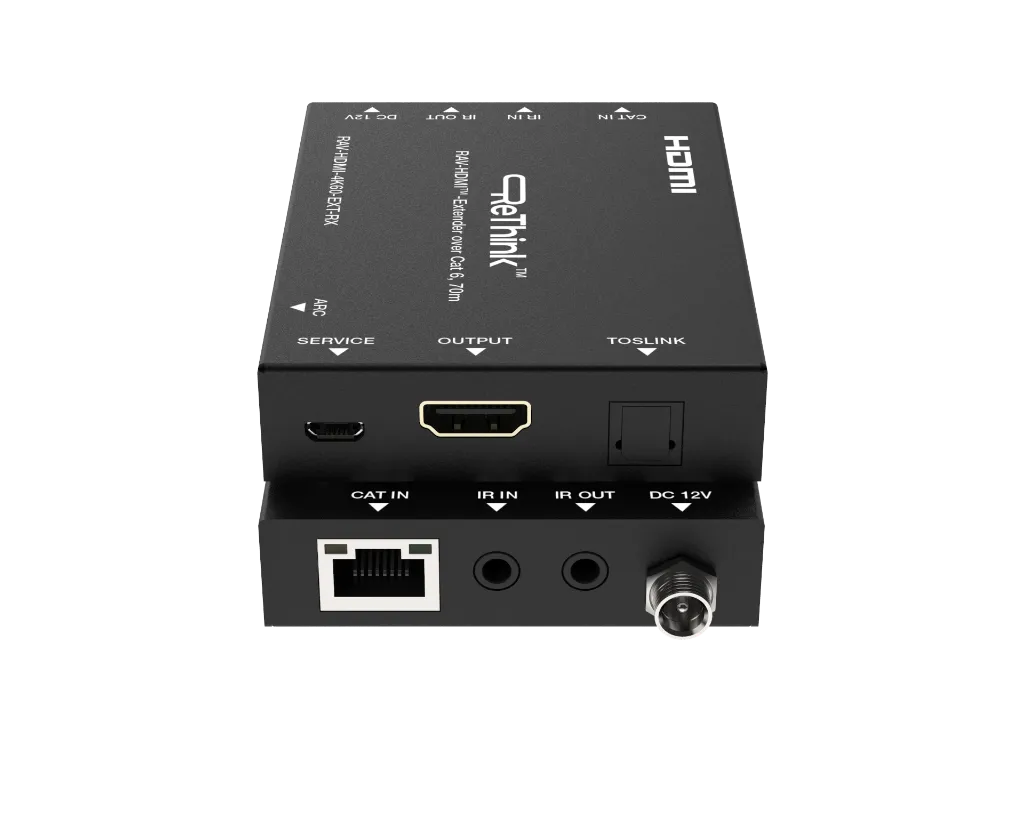

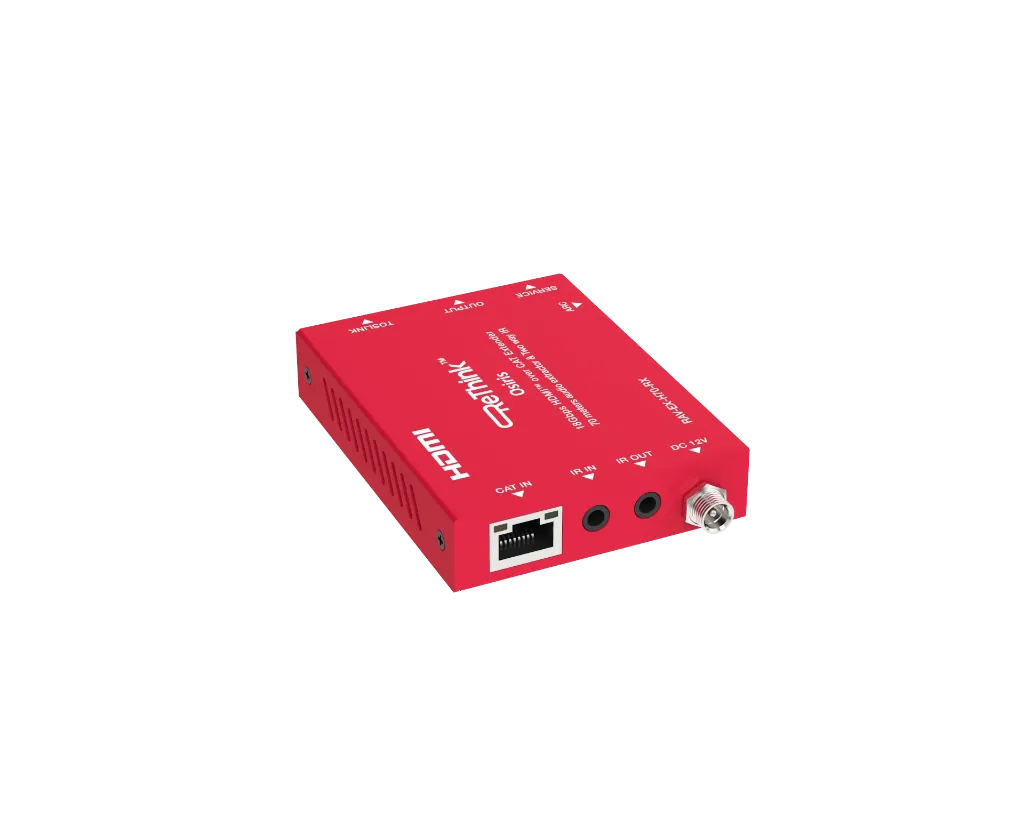

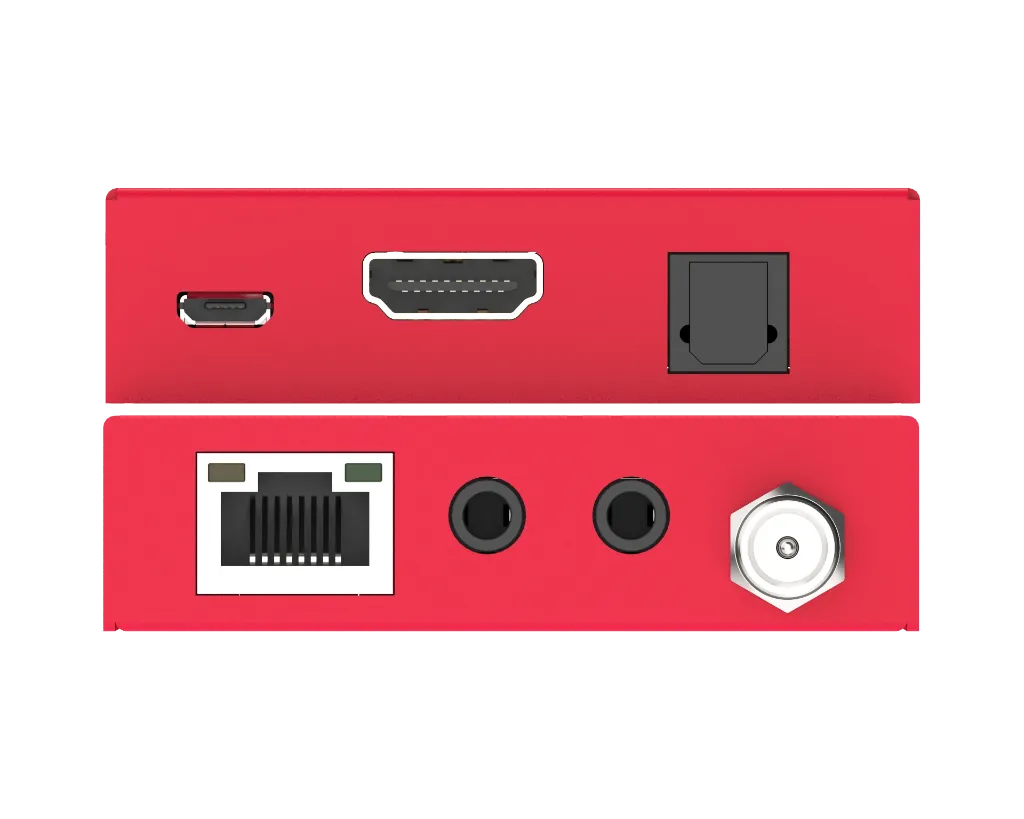

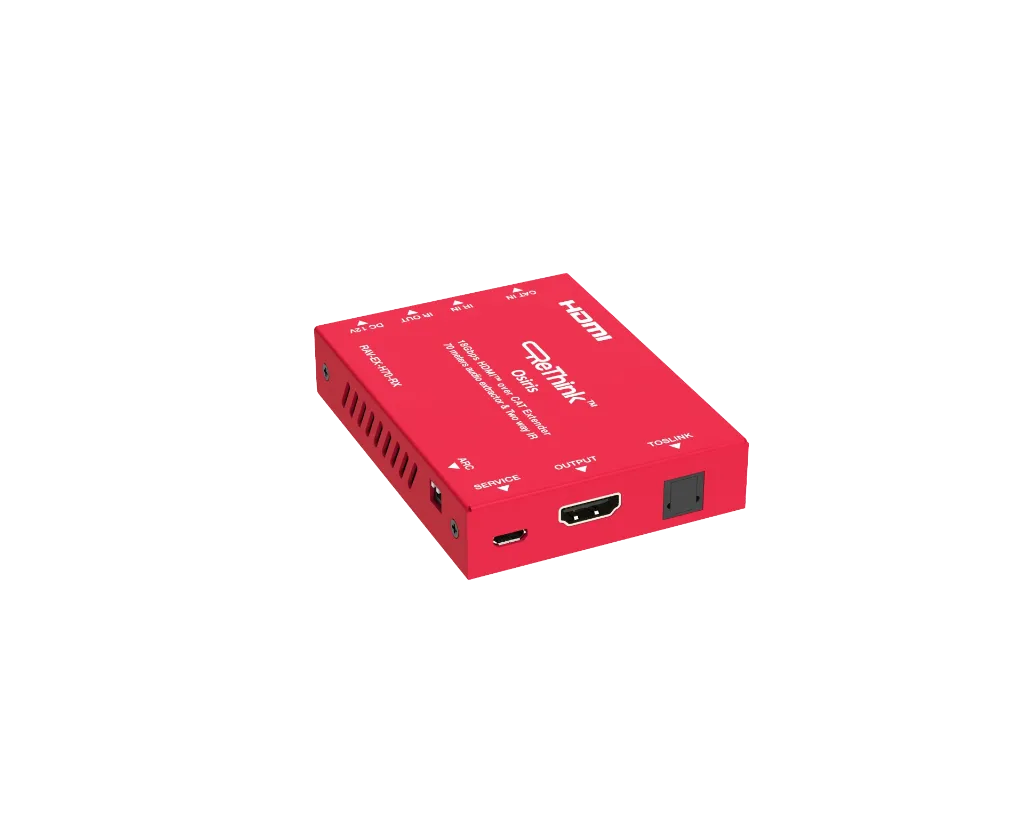

| Receiver: | 1x HDBT Input, 1x IR Input. 1x HDMI Output. 1x IR Output. |
| Signal and Bandwidth: | 18Gbps maximum bandwidth. Up to 4K2K@60Hz RGB/YCbCr 4:4:4. IR Frequency – Wideband 20K-60KHz. IR level – 5Vp-p. Transmission distance 4K2K60Hz 4:4:4 – 70m. 1080P-70m (cat6/6a cable). |
| Features: | HDMI 2.0b & HDCP 2.2 compliant, Bi-directional IR control. EDID pass-through Local HDMI loop output on Transmitter. ARC and audio de-embedding on optical. HDR, HDR10, HDR10+, Dolby Vision, HLG. Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master. Optical: Dolby 5.1, DTS 5.1, PCM 2.0, |
| Country of Origin: | China |
