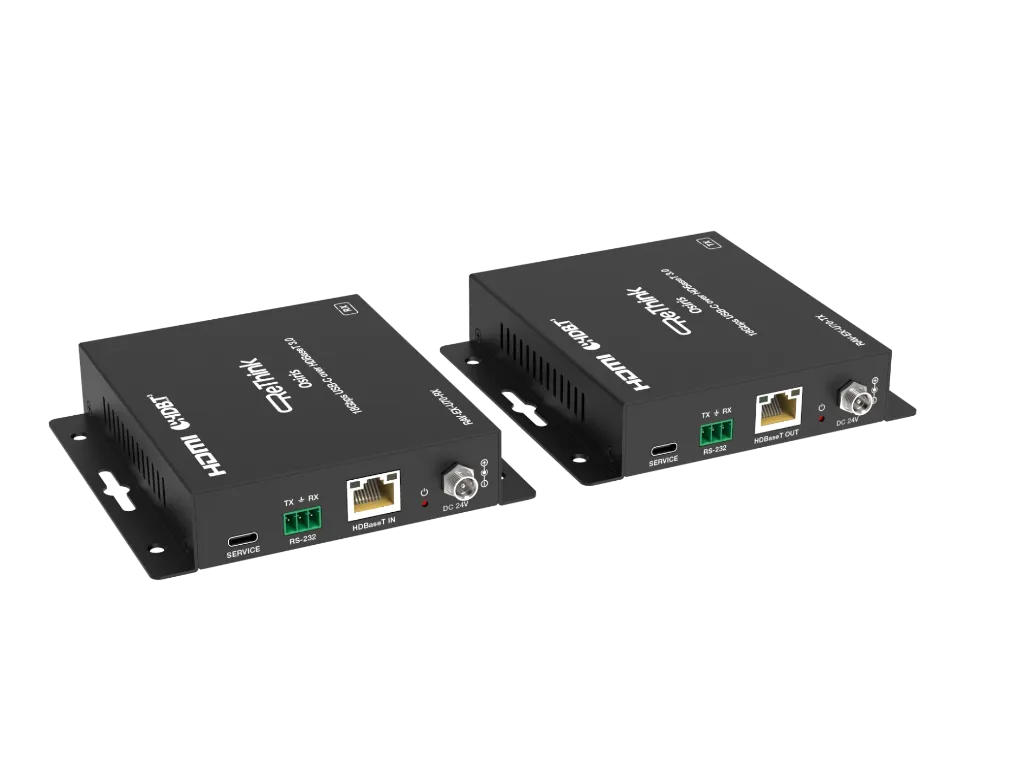

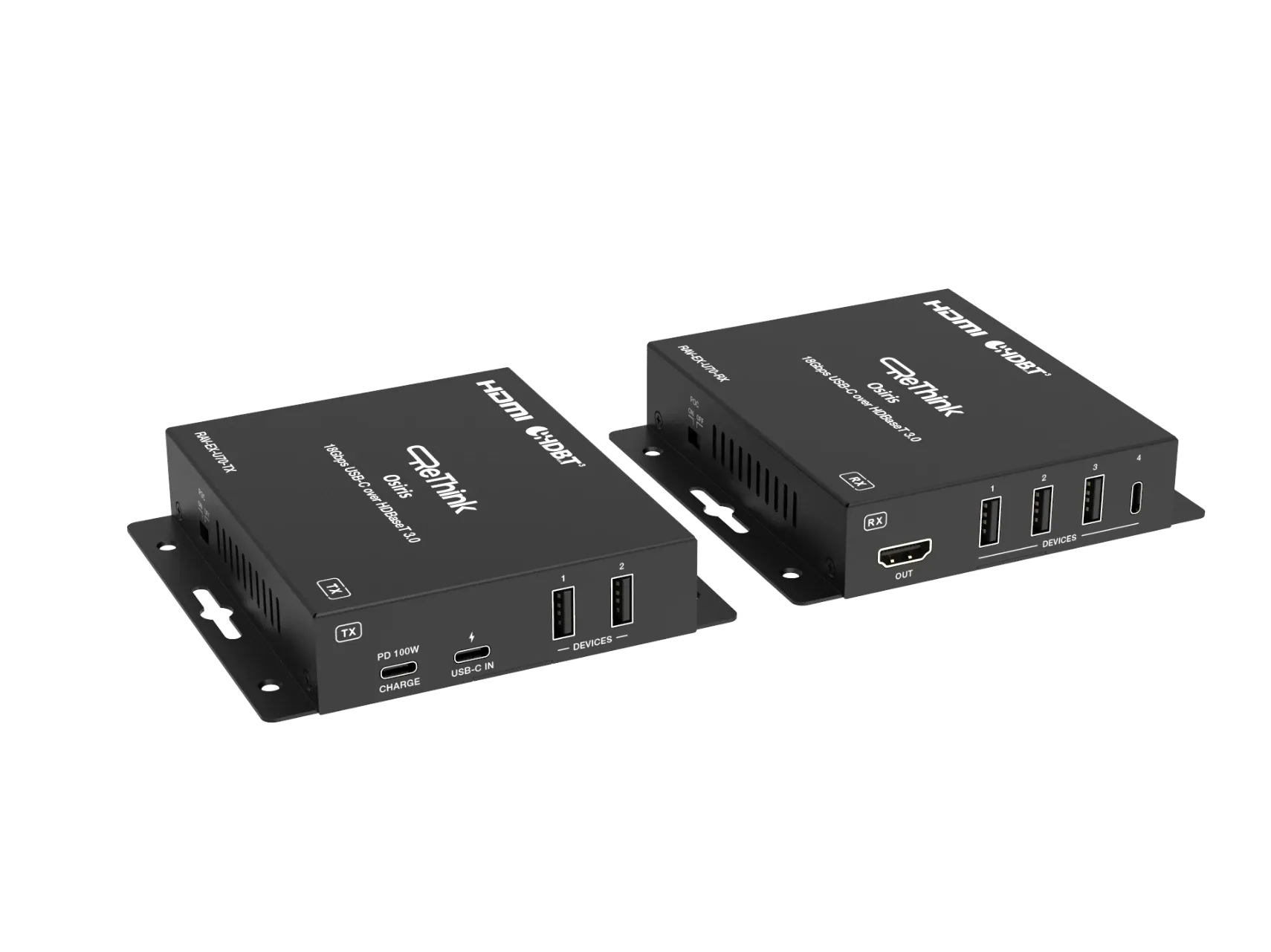

RAV-EX-U70-Tx/Rx allows USB-C video and USB 2.0 signals to be sent up to 70m. Accommodating 100w charging and providing access to local and remote USB device ports allowing peripherals such as cameras, speakerphones, printers, and keyboard & mouse to be connected to the host laptop.

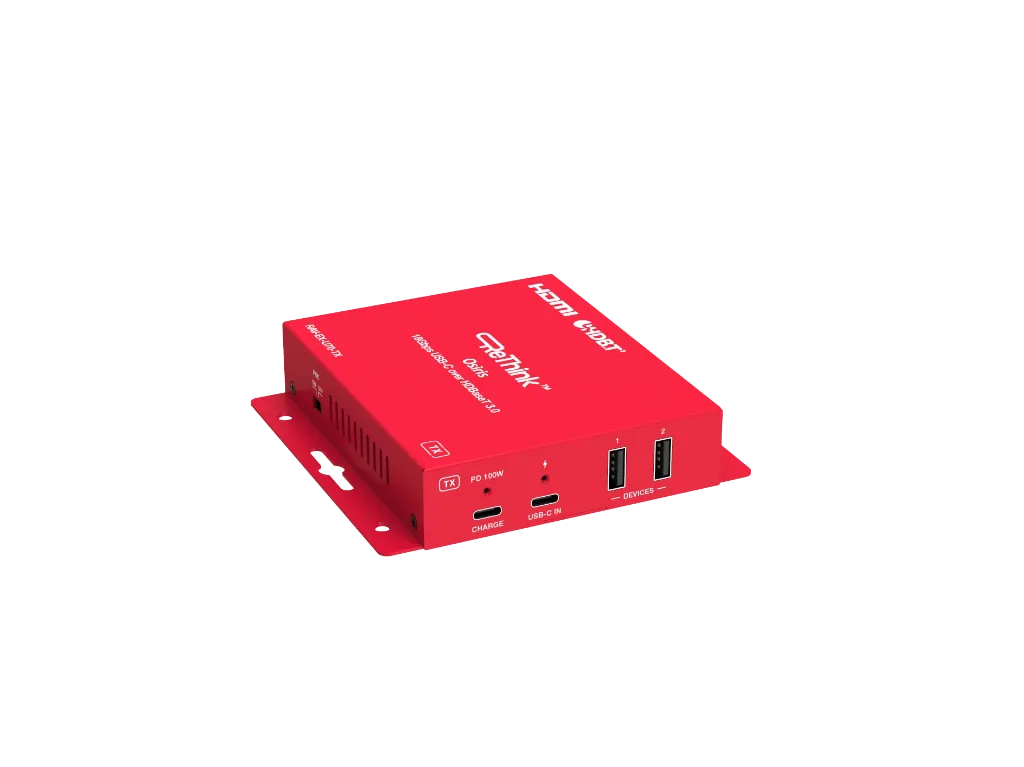

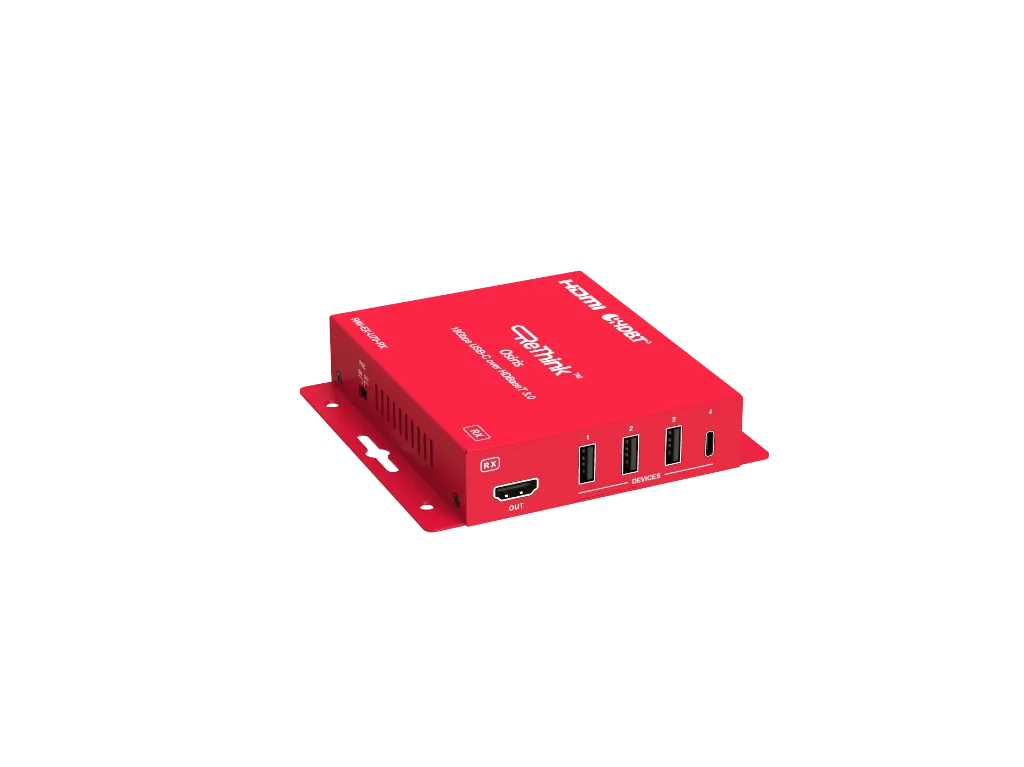

RAV-EX-U70-Tx/Rx is a professional and compact HDBT extender for USB-C video and USB 2.0 signals up to 70m. The transmitter can accommodate 100w charging with two local USB device ports whilst the transmitter supports a further three USB device ports allowing peripherals such as cameras, speakerphones, printers, and keyboard & mouse to be connected to the host laptop.
The units can be powered from either end and simultaneously allow RS-232 signal pass-through as well as an API command set for control system integration.
The compact design with fixed mounting brackets provides easy installation offering a convenient solution for video extension via a single CAT cable, making it a perfect fit for commercial A/V applications.

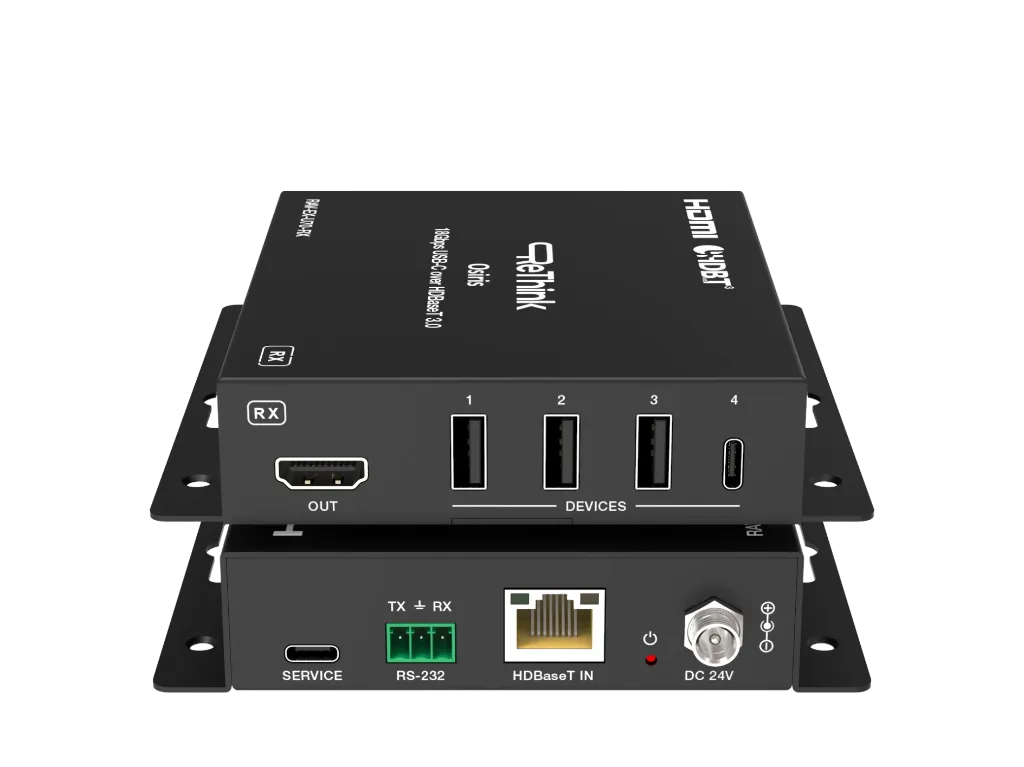

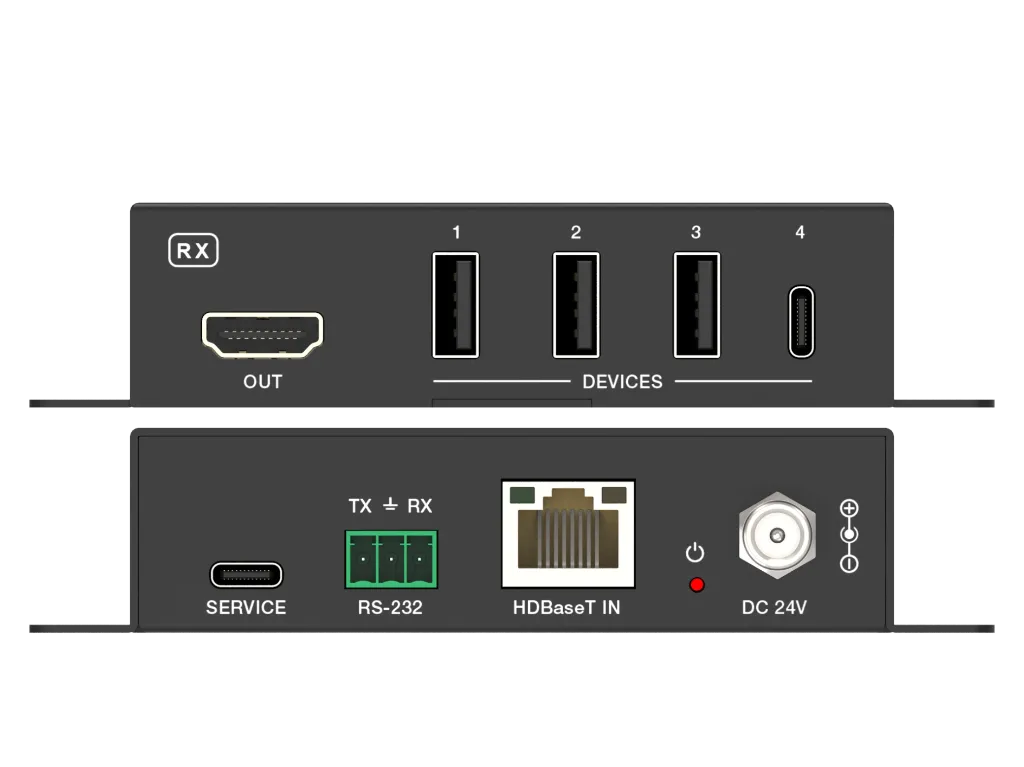

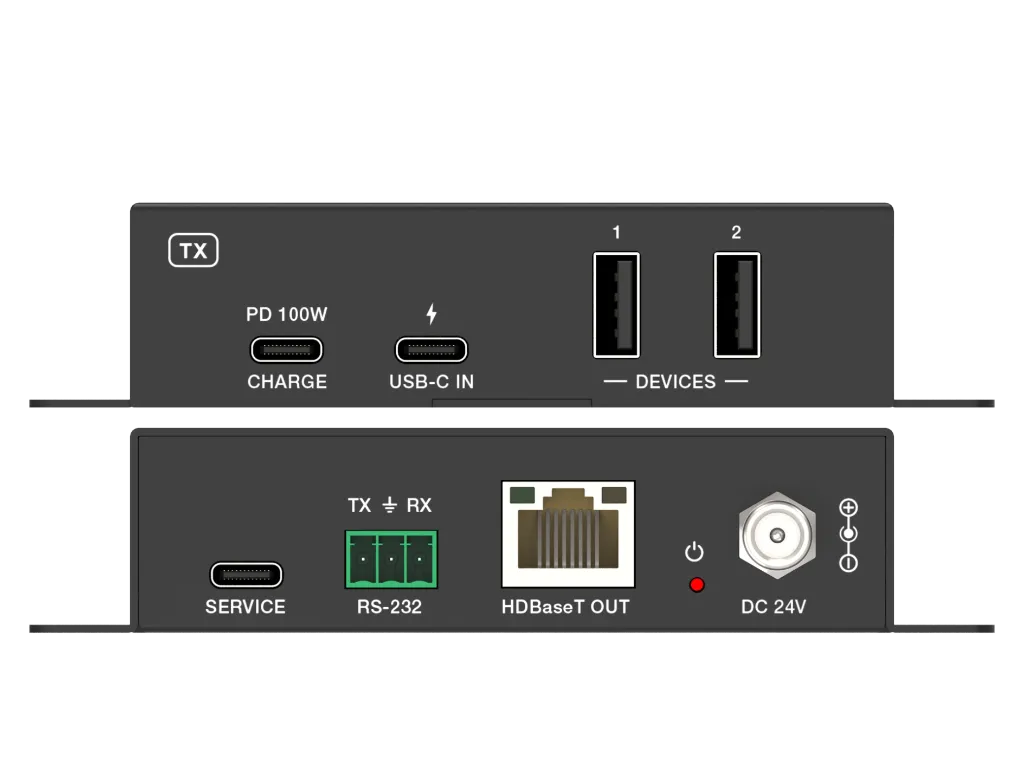

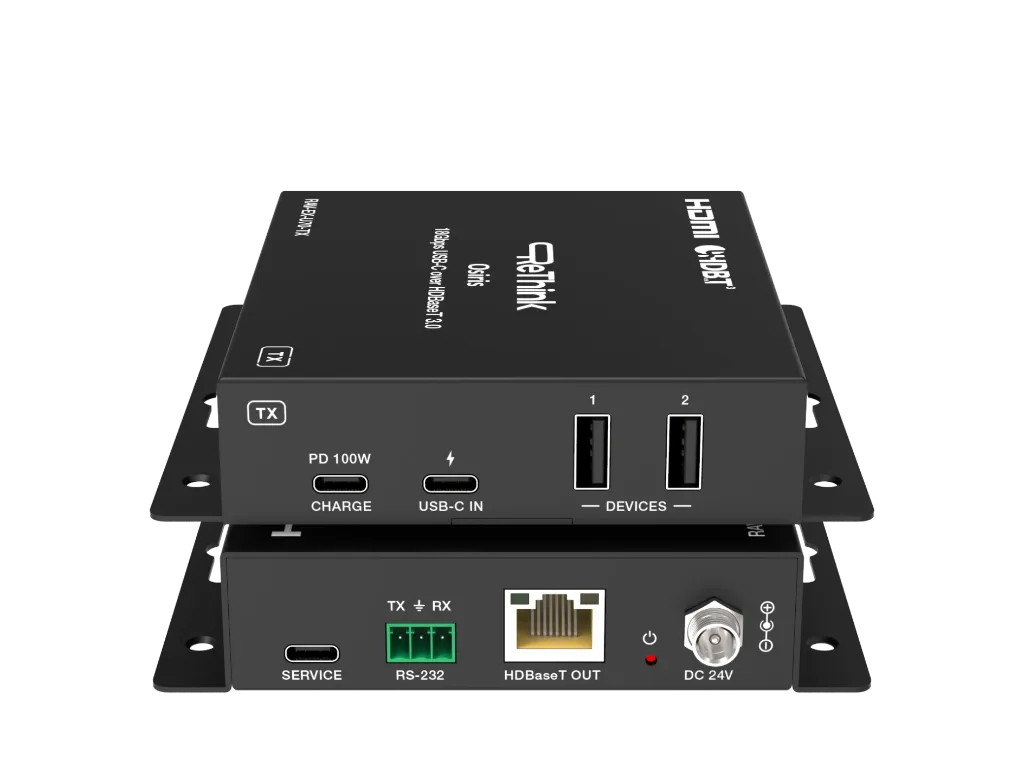

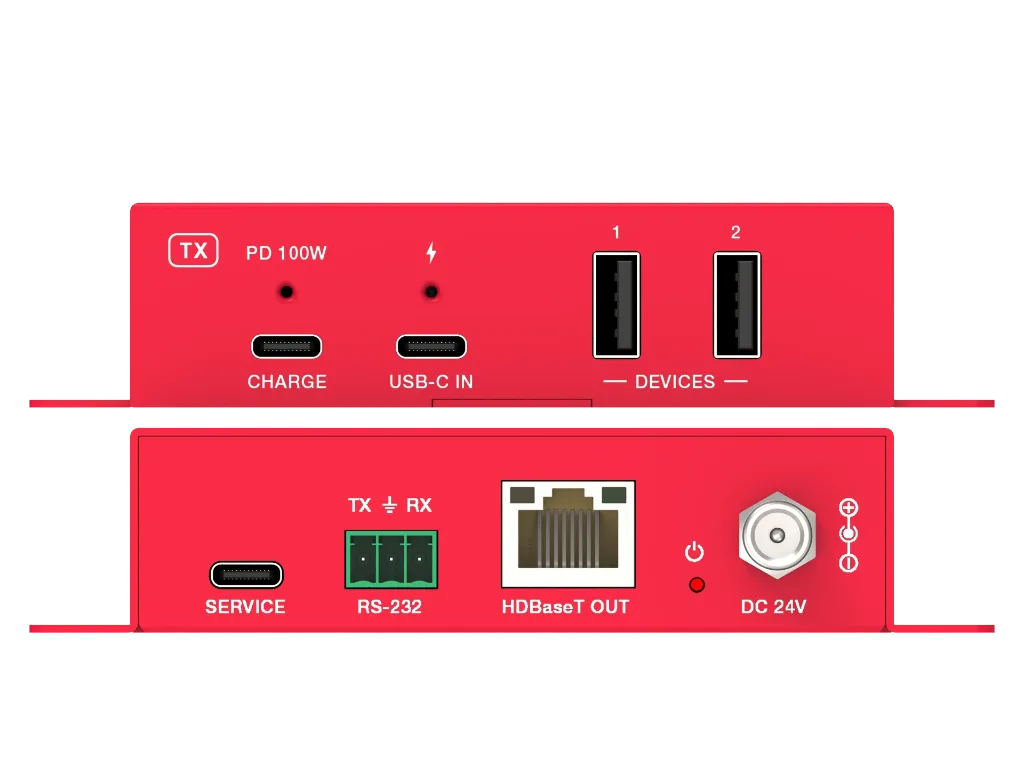

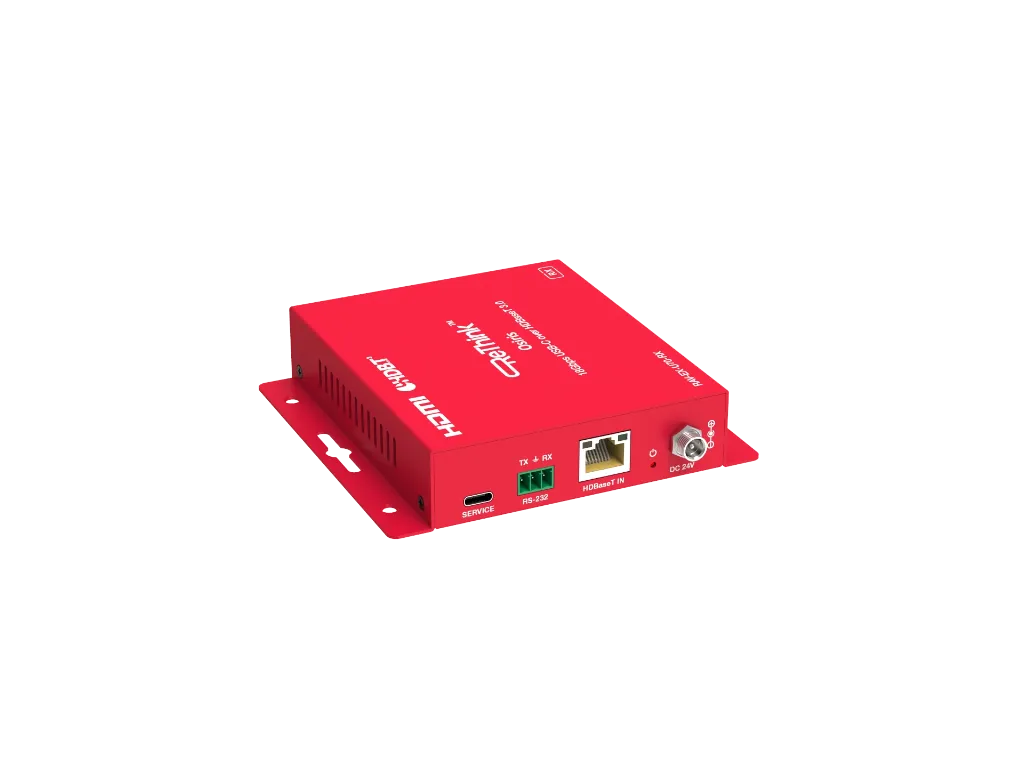

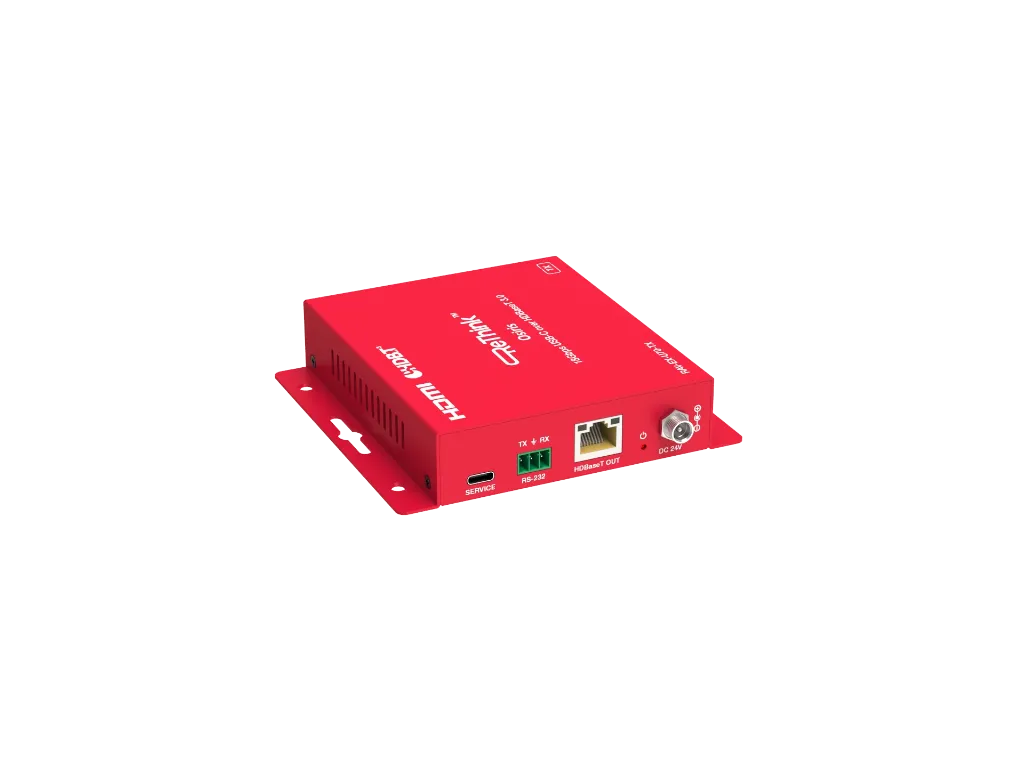

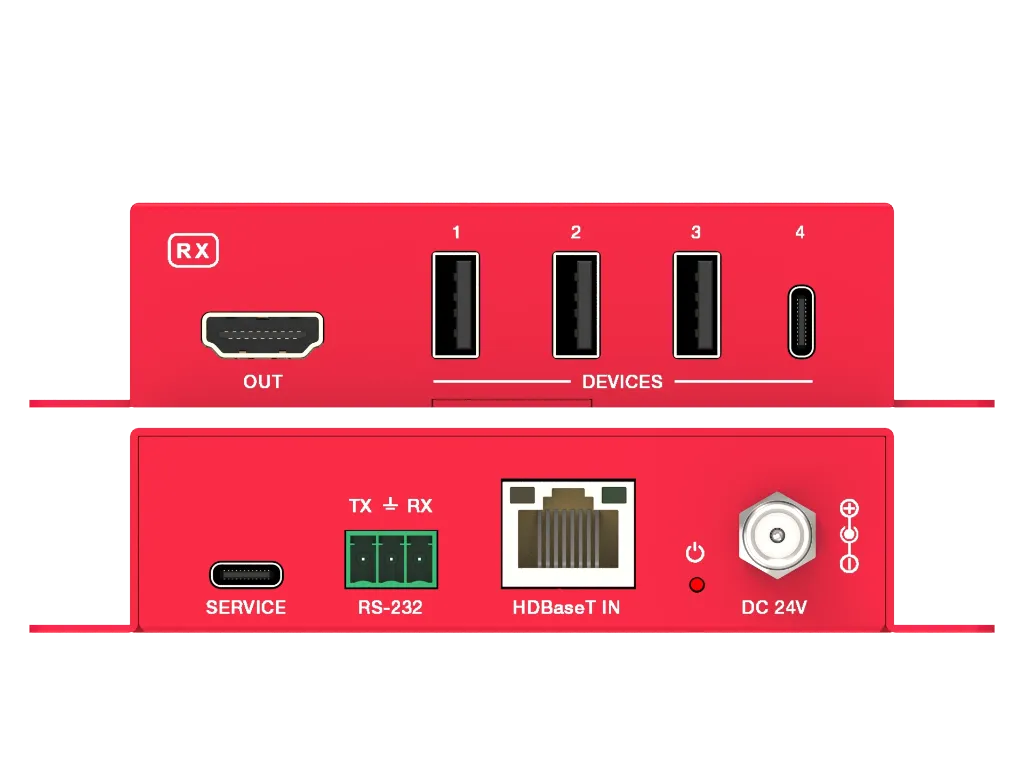

| Inputs: | Tx: 1x Charge USB-C, 1x USB-C, 2x USB-A, 1x Service USB-C, 1x RS-232 3-pin Phoenix, 1x locking DC 24V Rx: 1x USB-C, 3x USB-A, 1x HDBaseT, 1x Service USB-C, 1x RS-232 3-pin Phoenix, 1x locking DC 24V |
|---|---|
| Outputs: | Tx: 1x HDBaseT Rx: 1x HDMI |
| Maximum Bandwidth: | Max Video bandwidth 18Gbps |
| Features: | Video Resolution: Up to 4K@60Hz (4:4:4 8bit). Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0. Color Depth: 8/10/12bit. HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG. Audio Formats: USB-C/HDMI pass-through: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X. Transmission Distance: Extend 4K60Hz (4:4:4 8bit) signal up to 130ft/40m and 4K30Hz (4:4:4 8bit) signal up to 230ft/70m with CAT6A/7 cable ▪ USB 2.0 passthrough up to 230ft/70m, connecting up to 4 USB devices to the receiver ESD Protection. |
| Country of Origin: | China |
