RAV-MV-4x2HU-Tx/Rx

RAV-MV-4x2HU-Tx/Rx is a 4×2 seamless presentation switch. It features multi-view function for multiple input sources to be displayed on a single screen. The product offers 4K switching, video conferencing support, integrated USB hub functionality and audio control function including Dante 2×2 input & output.

Ideal for professional environments, it ensures seamless connectivity and intuitive operation for presentations and collaboration.

HDMI USB-C HDBT 70m

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

RAV-MV-4x2HU-Tx/Rx
4×2 Presentation Multi Viewer Conferencing Auto-Switcher

RAV-MV-4x2HU-Tx/Rx is a 4×2 seamless presentation switch supports video resolutions up to 4K@60Hz 4:4:4 8bit deep colour and HDCP 2.3 compliant, it features multi-view function for multi sources can be displayed on single screen. This presentation switch supports two HDMI outputs and one HDBaseT 3.0 mirrored with HDMI OUT2 output and HDBaseT 3.0 extending uncompressed 4K60Hz 4:4:4 up to 132ft/40m or 4K30Hz/1080P60Hz up to 230ft/70m via single Cat6A cable.

This product features four video inputs: two USB-C and two HDMI inputs. Each USB-C input supports DisplayPort alternate mode A/V up to 4K@60Hz 4:4:4 8bit deep colour, USB 3.2 Gen 1 5Gbps data and up to 60 watts power charging to USB-C source device. It also features 1Gbps Ethernet over USB-C functionality to allow USB-C source device to access internet seamlessly.

Local USB 3.2 KVM switching and extending USB 2.0 high speed over HDBaseT 3.0 can be allowed to connect external USB 2.0 devices or cameras from RX remote side for video conference.

For audio the product manages embedded and de-embedded audio, contains a built-in audio DSP with audio mixing, matrixing, independent EQ/volume/delay adjustment.

It also supports Dante 2×2 audio input and output interface, and it can be seamlessly connected to any existing audio processing system with Dante enabled.

The RAV-MV-4x2HU-Tx/Rx can be controlled via front panel buttons, IR remote control, API commands using RS-232 or TCP/IP.

A Web server / GUI is built in that features A/V control, automatic display control and input EDID management.

The product is ideal for software based video teleconference rooms.

User Manual

Download Manual.pdf

Download RS-232 Commands.pdf

Specification Sheet

Download Specification Sheet.pdf

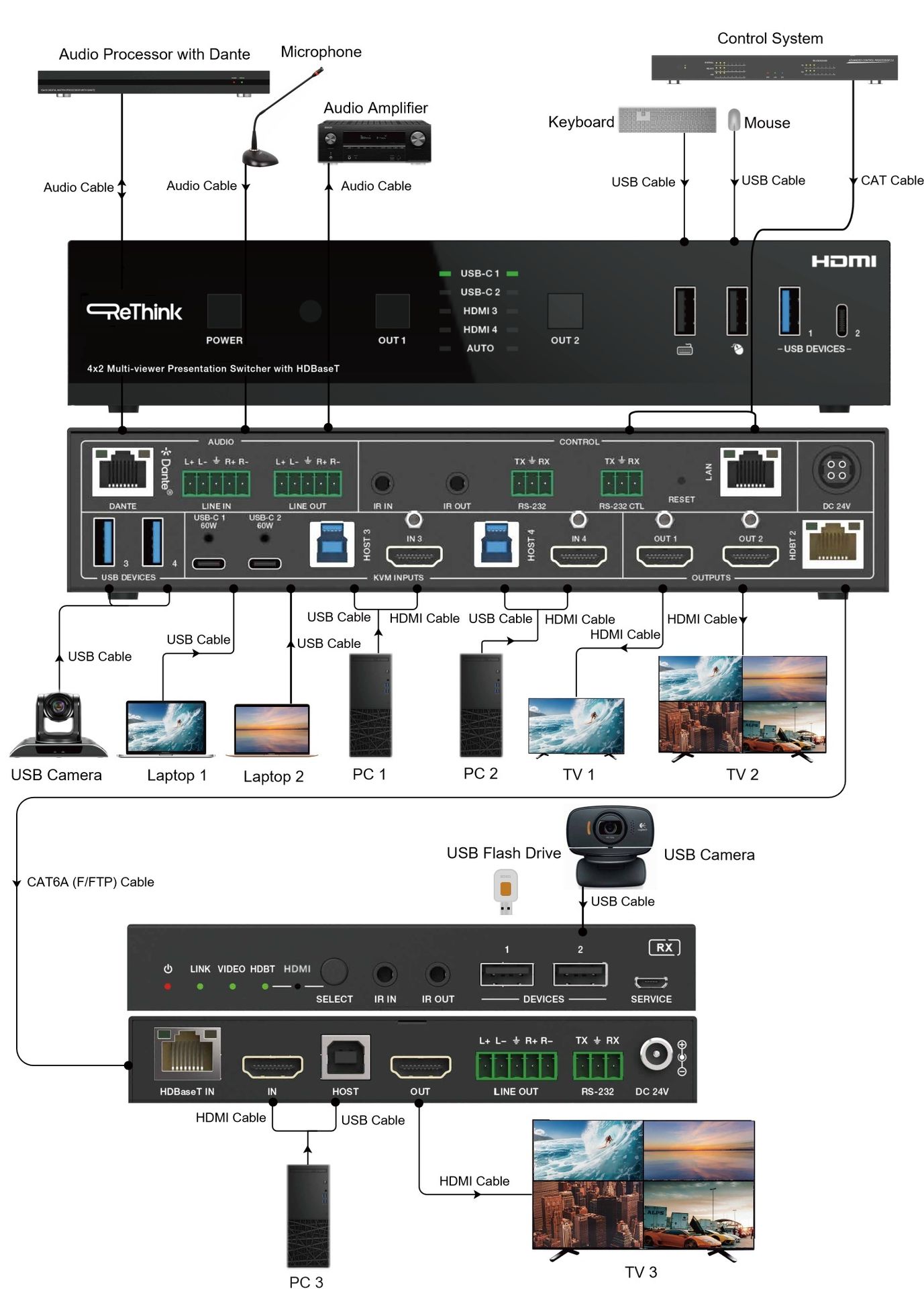

Application Diagram

Application Diagram.jpg

Additional Information

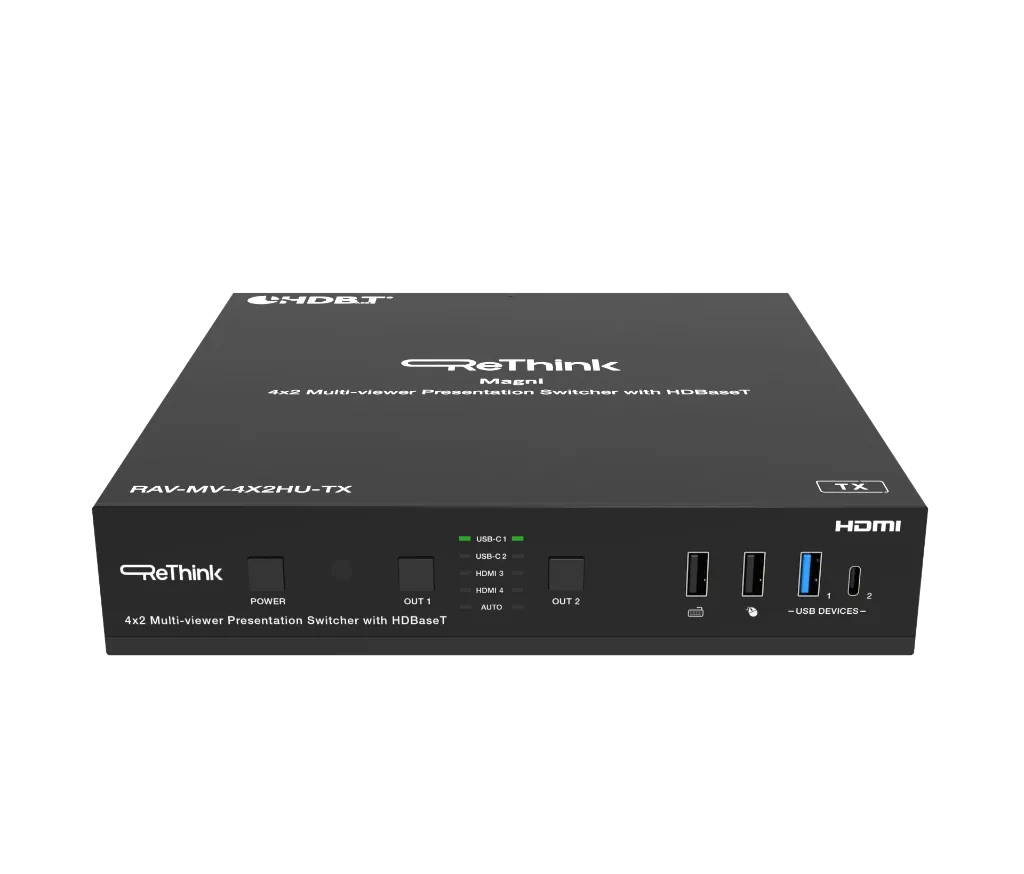

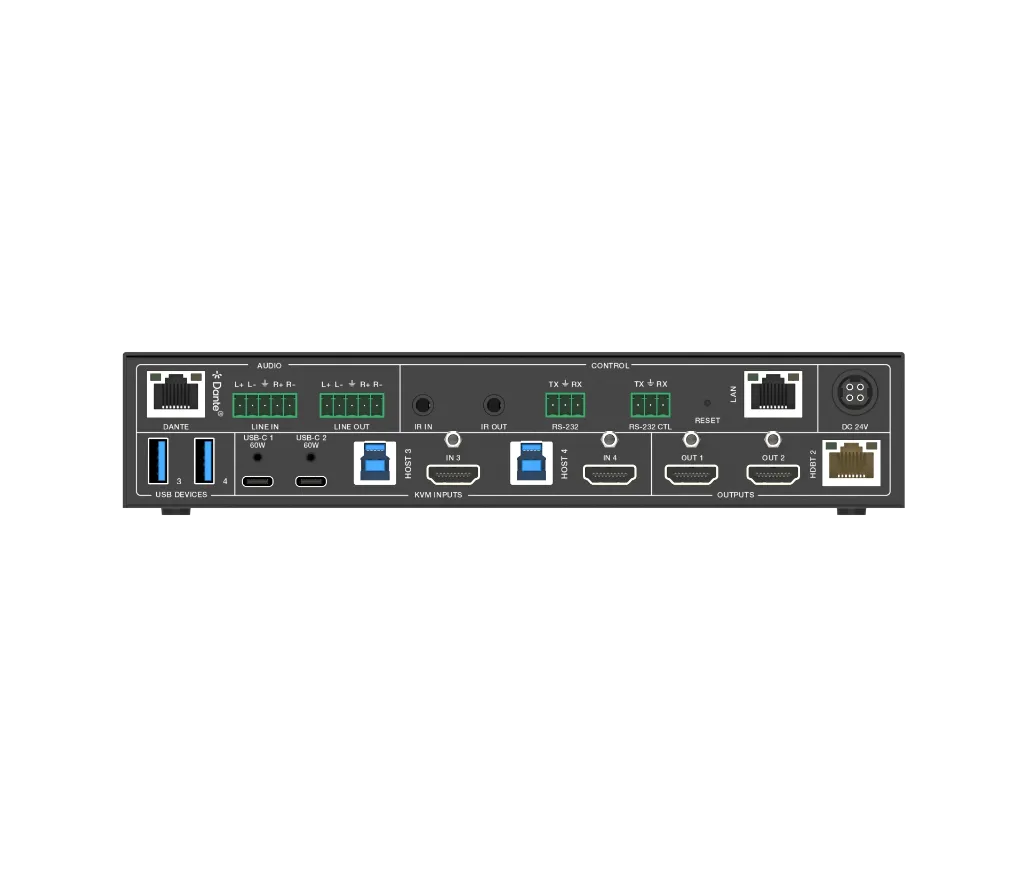

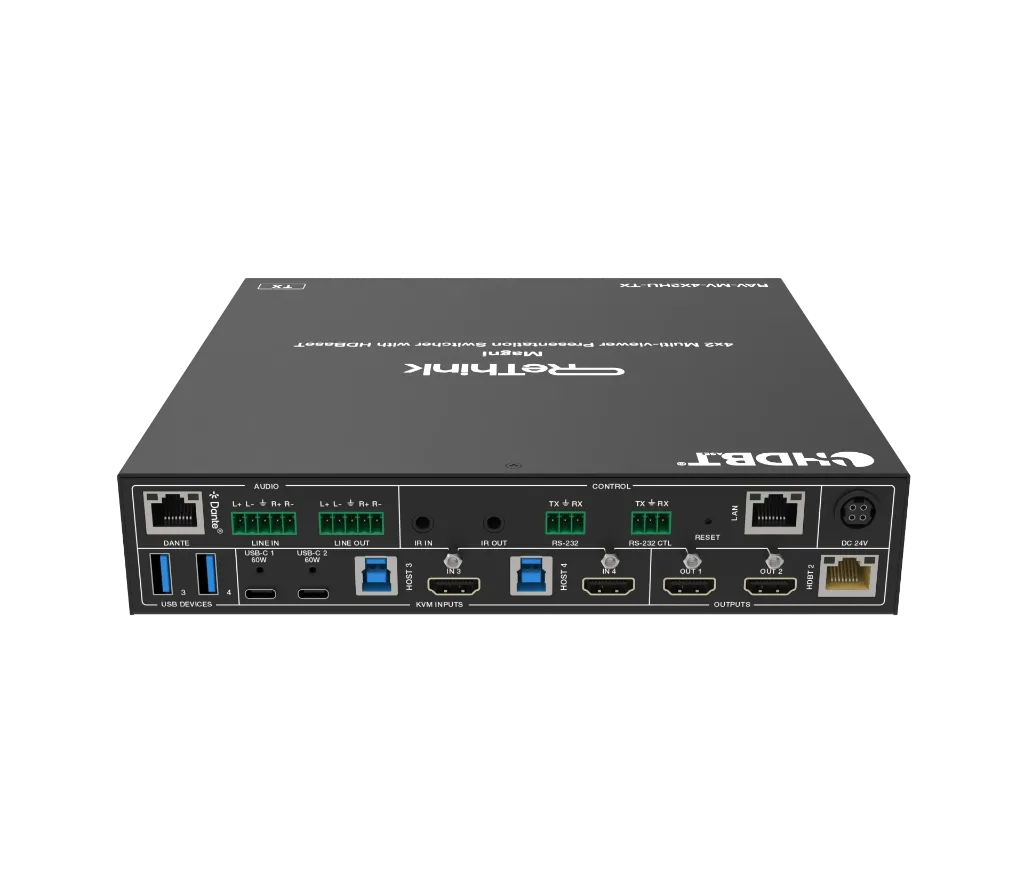

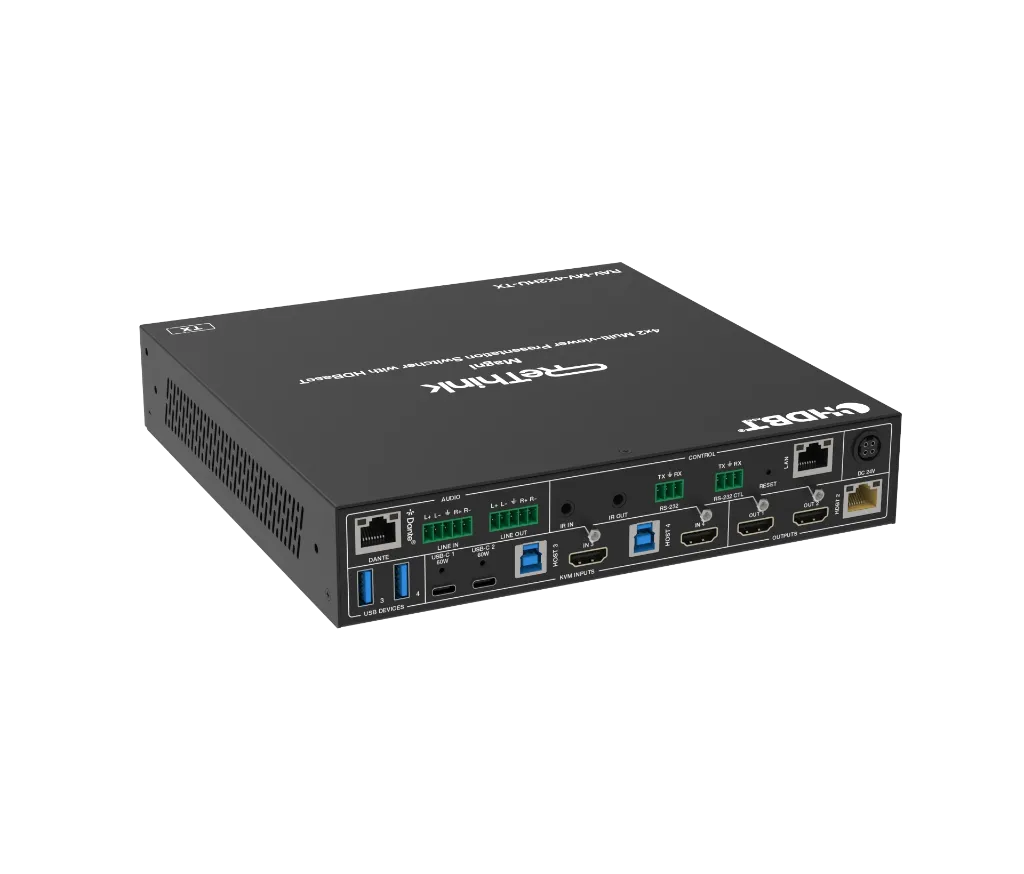

Transmitter:	Input: 2x HDMI IN [HDMI Type A, 19-pin female], 2x USB-C IN [Type C, 24-pin female], 1x LINE IN [5pin-3.5mm phoenix], 1x DANTE IN [RJ45]. Output: 2x HDMI OUT [HDMI Type A, 19-pin female], 1x HDBT OUT [RJ45, 48V POE/PSE], 1x LINE OUT [5pin-3.5mm phoenix]. Control: 1x RS-232 [3pin-3.5mm phoenix connector], 1x RS-232 CTL [3pin-3.5mm phoenix connector], 1x LAN [RJ45], 2x USB 3.2 HOST [USB Type B, 9-pin female], 3x USB 3.2 DEVICES [USB Type A, 9-pin female], 2x USB 1.1 KVM [Type A, 4-pin female], 1x USB-C DEVICE [Type C, 24-pin female], 1x IR IN [3.5mm audio jack, 12V level], 1x IR OUT [3.5mm audio jack, 12V level].

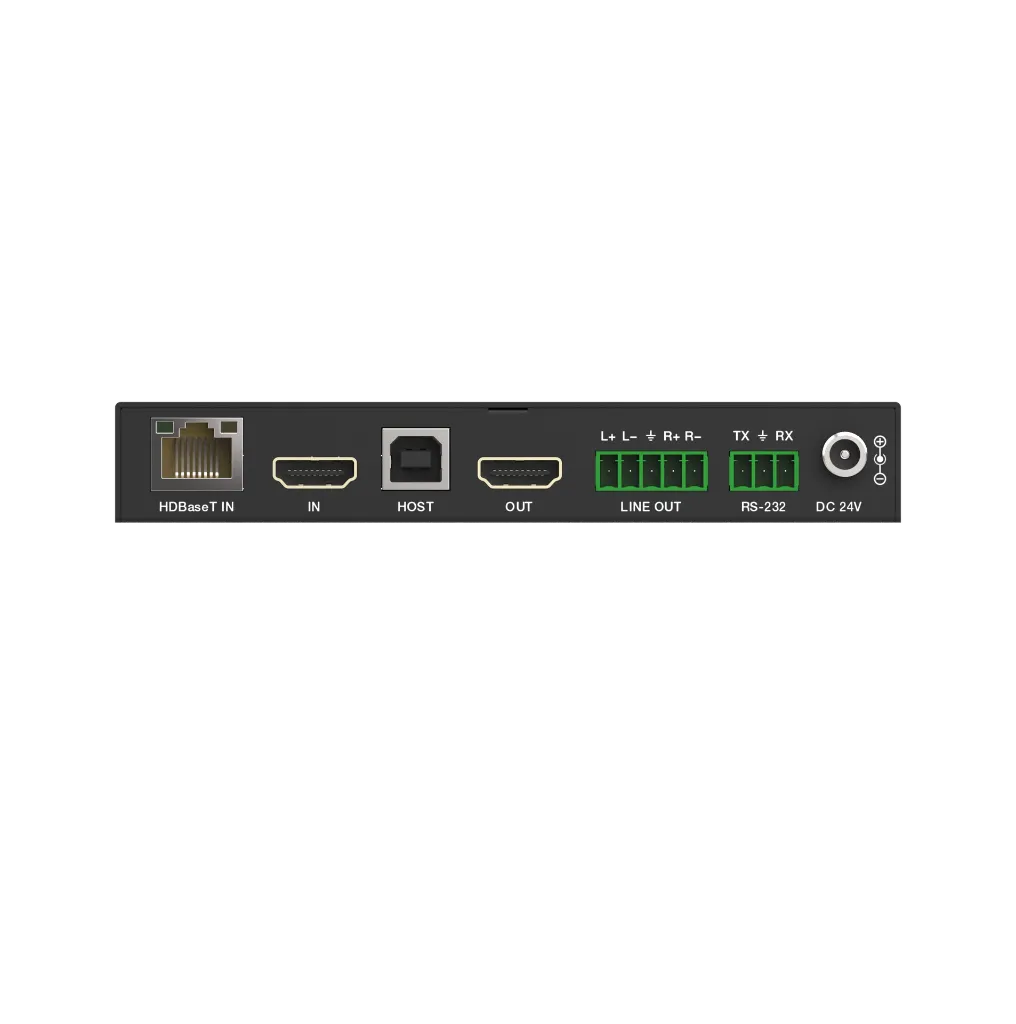

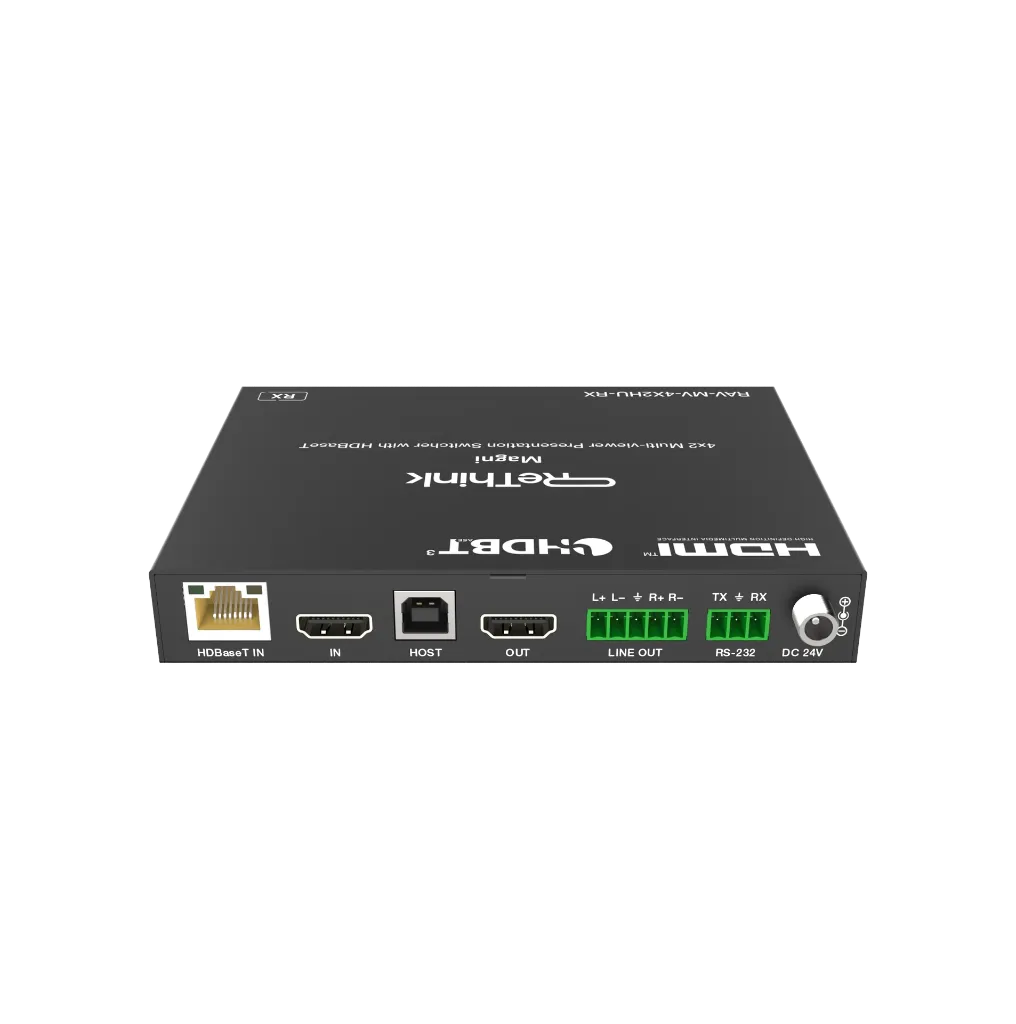

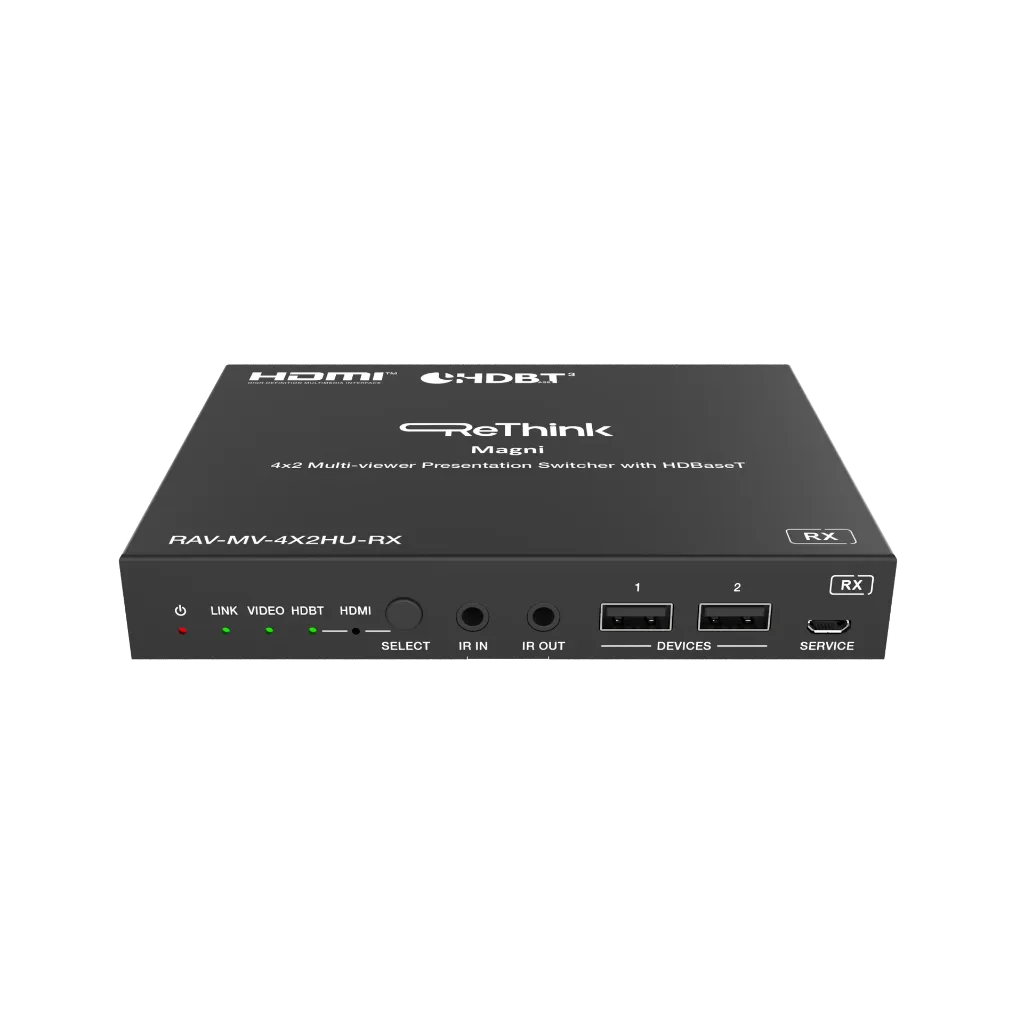

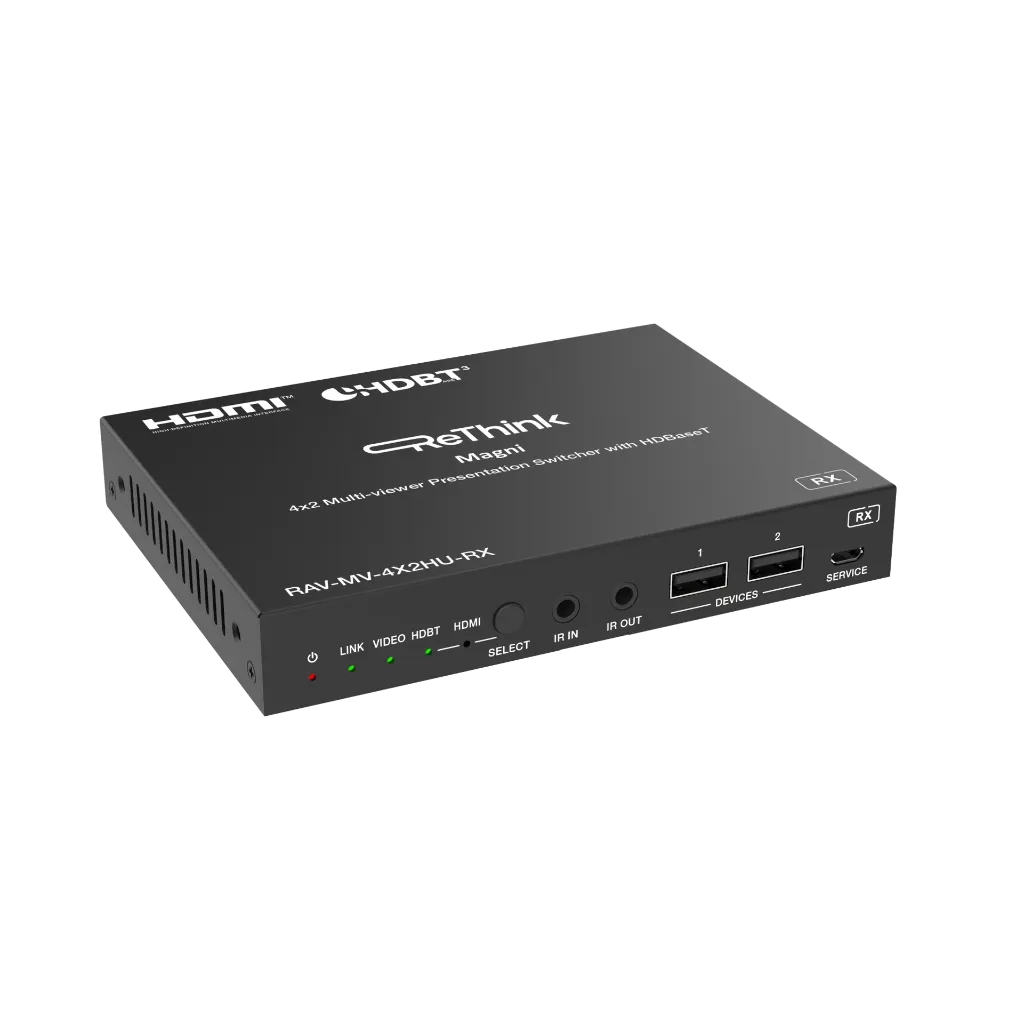

Receiver:	Input: 1x HDMI IN [Type A, 19-pin female], 1x HDBaseT IN [RJ45, 48V POE/PD]. Output: 1x HDMI OUT [Type A, 19-pin female], 1x LINE OUT [5pin-3.5mm phoenix]. Control: 1x RS-232 [3pin-3.5mm phoenix], 1x USB HOST [Type B, 4-pin female], 2x USB DEVICES [Type A, 4-pin female], 1x SERVICE [Micro USB, 5-pin female], 1x IR IN [3.5mm audio jack, 12V level], 1x IR OUT [3.5mm audio jack, 12V level].
Video Resolution:	Video resolution up to 4K@60Hz 4:4:4, as specified in HDMI 2.0b. HDCP 2.3, DP 1.4 and HDBase 3.0 compliant
Transmission Distance:	Uncompressed 4K60 4:4:4 over HDBaseT 3.0 up to 132ft/40m via single CAT6A cable Uncompressed 1080P&4K30 over HDBaseT 3.0 up to 230ft/70m via single CAT6A cable
Features:	USB 3.2 Gen 1 up to 5Gbpsx2 seamless switching (single screen) and fast switching (multi viewer) function. Multiple multi viewer display modes: Auto/Single/PIP/PBP/Triple/Quad/Custom. Manual switching or auto switching mode. Input: 2x USB-C, 2x HDMI, 1x Analog audio, 1x Dante 2ch. Output: 1x HDMI, 1x HDMI + HDBaseT mirrored, 1x Analog audio, 1x Dante 2ch. Audio DSP for gain, equalizer, volume and delay Dante 2×2 audio input and output CEC/RS-232 control external devices ON/OFF Advanced EDID management Support standard PoE power supply from TX to RX (TX_PSE, RX_PD) Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI USB-C supports DisplayPort Alternate mode for A/V, USB 3.2, 1G LAN and 60W charging. Local USB 3.2 switching and extending USB 2.0 over HDBaseT 3.0. Local USB KVM hotkeys and mouse switching. Audio embedded and de-embedded. Audio DSP for gain, equalizer, volume and delay. Dante 2×2 audio input and output. CEC/RS-232 control external devices ON/OFF. Advanced EDID management. Support standard PoE power supply from TX to RX (TX_PSE, RX_PD). Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI.
Package Contents:	1x 4×2 Seamless Presentation Switch, 1x HDBaseT Receiver. 1x IR Blaster Cable (1.5 meters), 1x IR Wideband Receiver Cable (1.5 meters), 3x 3pin-3.5mm Phoenix (male), 3x 5pin-3.5mm Phoenix (male), 4x Mounting Ear with 8x Screws, 1x 24V/8A Desktop Power Supply & 1 x AC Power Cord (1.5 meters), 1x IR Remote. 1x User Manual.
Country of Origin:	China.
