RAV-SW-4x1HU-VC

USB-C and HDMI auto switcher with video conferencing support.

Enquire about this productWhere to buy
RAV-SW-4x1HU-VC — USB-C and HDMI auto switcher with video conferencing support

1 USB-C + 3 HDMI in

4K60

60 W (100 W with RAV-160W-PSU)

USB 3.0 KVM host switching

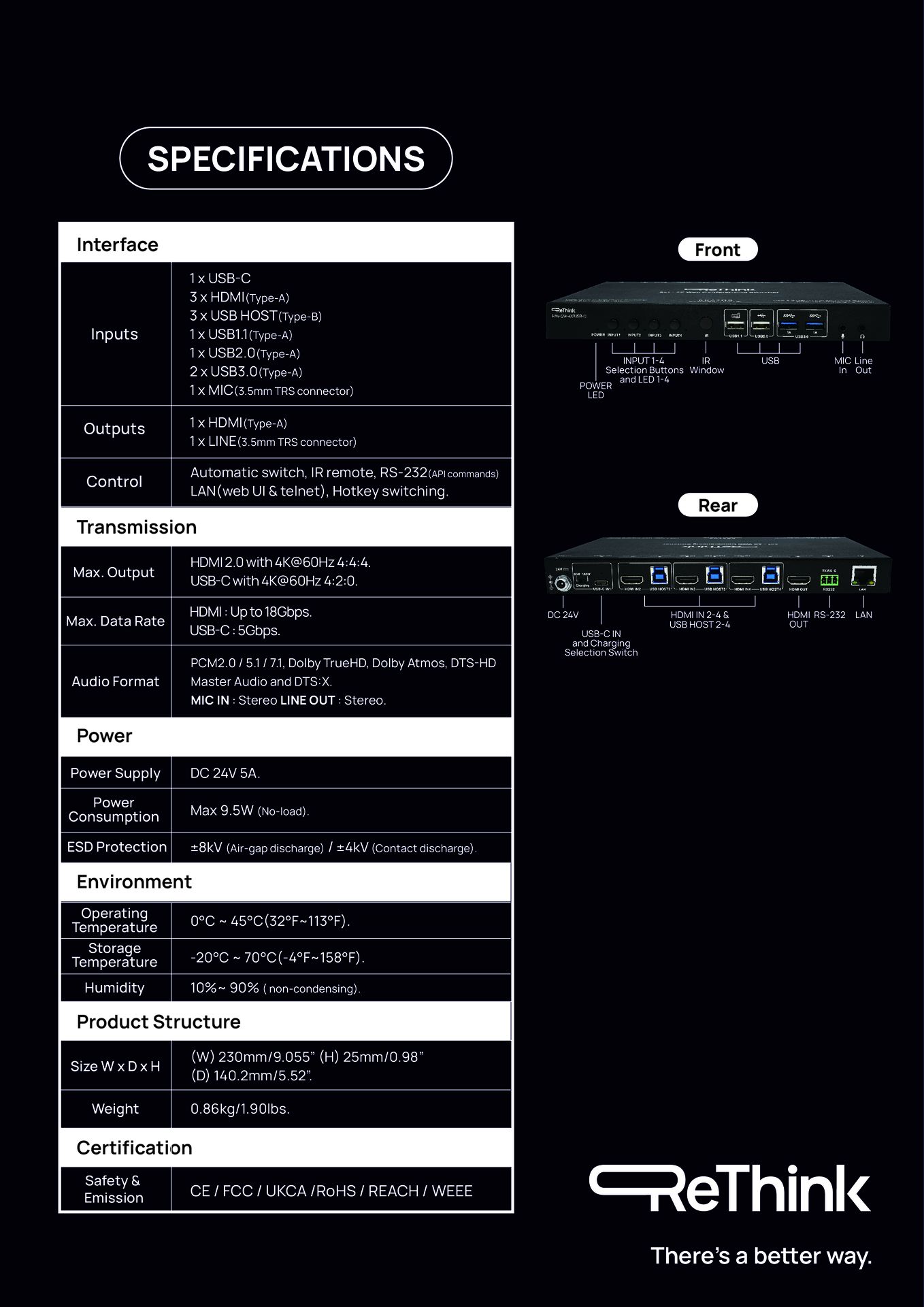

Tech specs

  • 011 USB-C + 3 HDMI in
  • 024K60
  • 0360 W (100 W with RAV-160W-PSU)
  • 04USB 3.0 KVM host switching
  • 05RS-232
  • 06LAN web UI
  • 07CEC
  • WarrantyFive-year limited warranty as standard

In the box

Package contents available on request. Ask us

Downloads

All product documents →

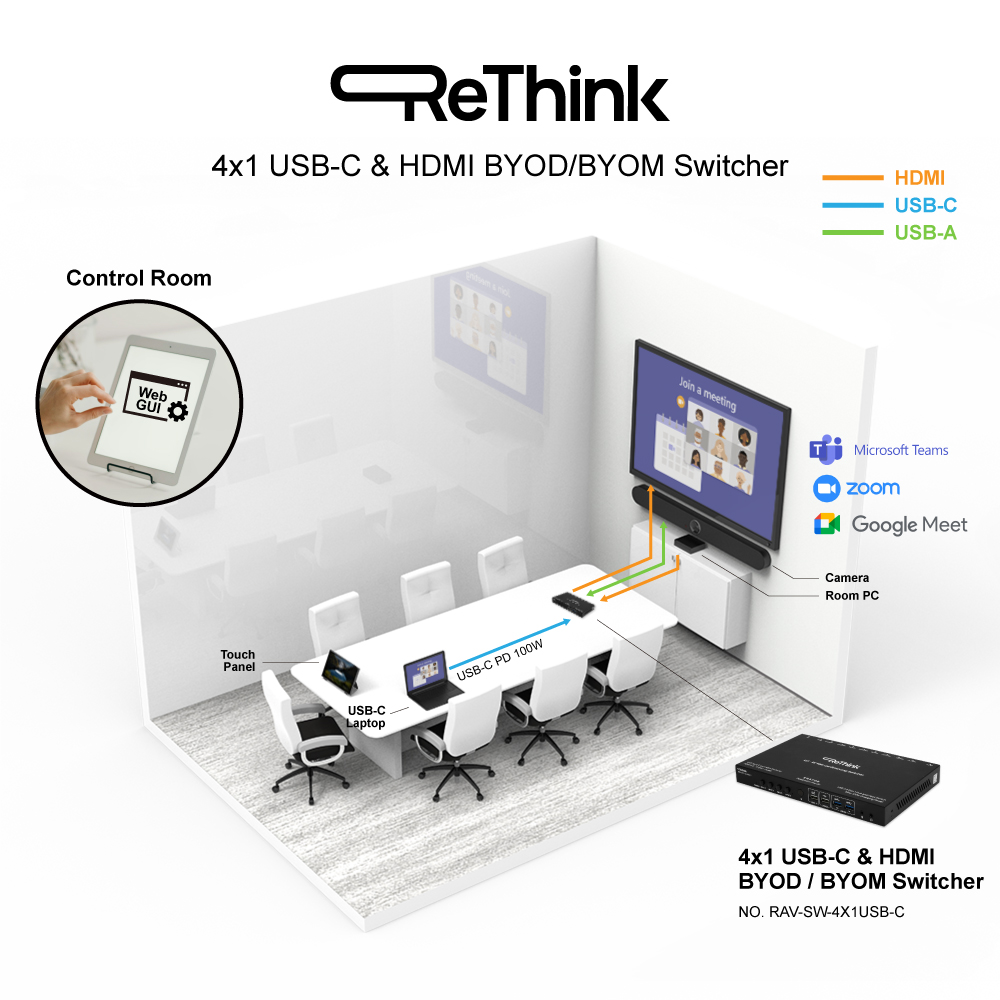

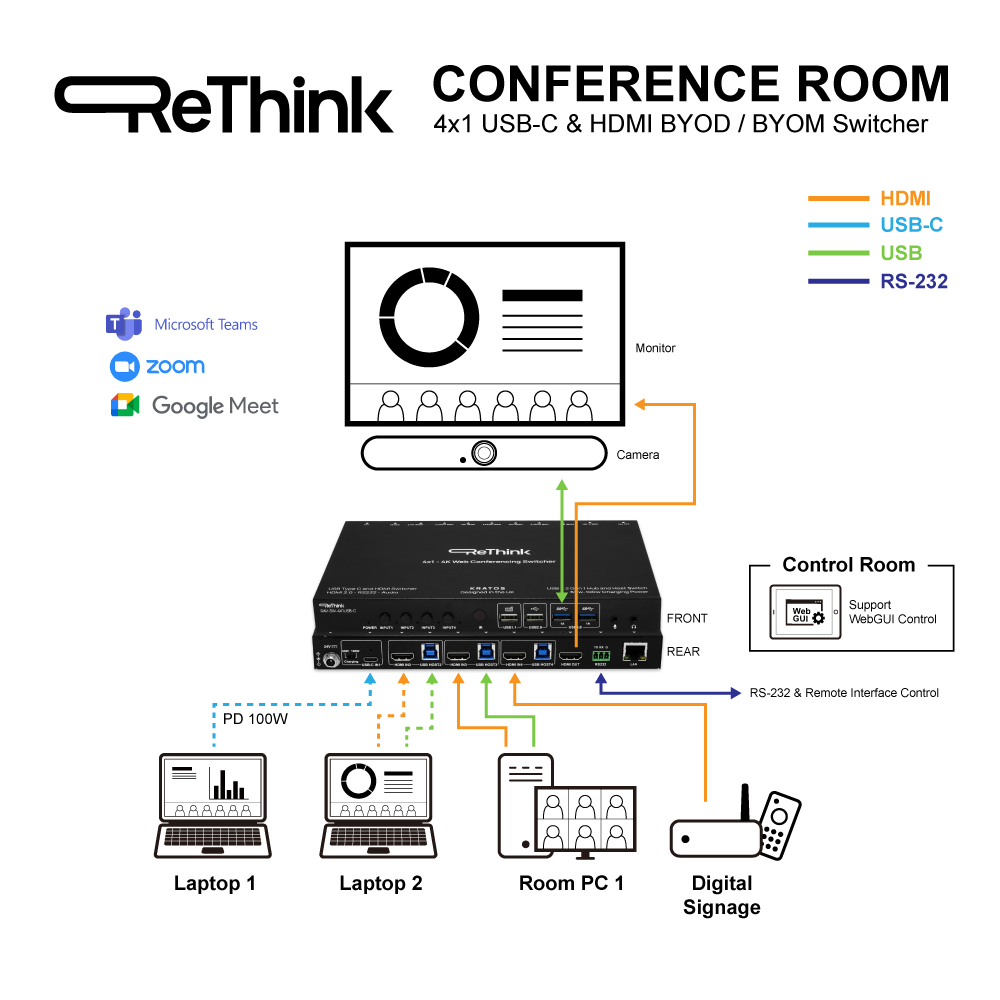

Room Dock Series sheetRAV-SW-4x1HU-VCProduct Manual.pdfRAV-SW-4x1HU-VCRS-232 Control Commands.pdfRAV-SW-4x1HU-VCProduct Specification Sheet.jpgRAV-SW-4x1HU-VCProduct Brochure.jpgRAV-SW-4x1HU-VCApplication Diagram 1.jpgRAV-SW-4x1HU-VCApplication Diagram 2.jpgRAV-SW-4x1HU-VC

Room Dock Series sheet

Open PDF

Your browser cannot show the sheet here.

Open the PDF
