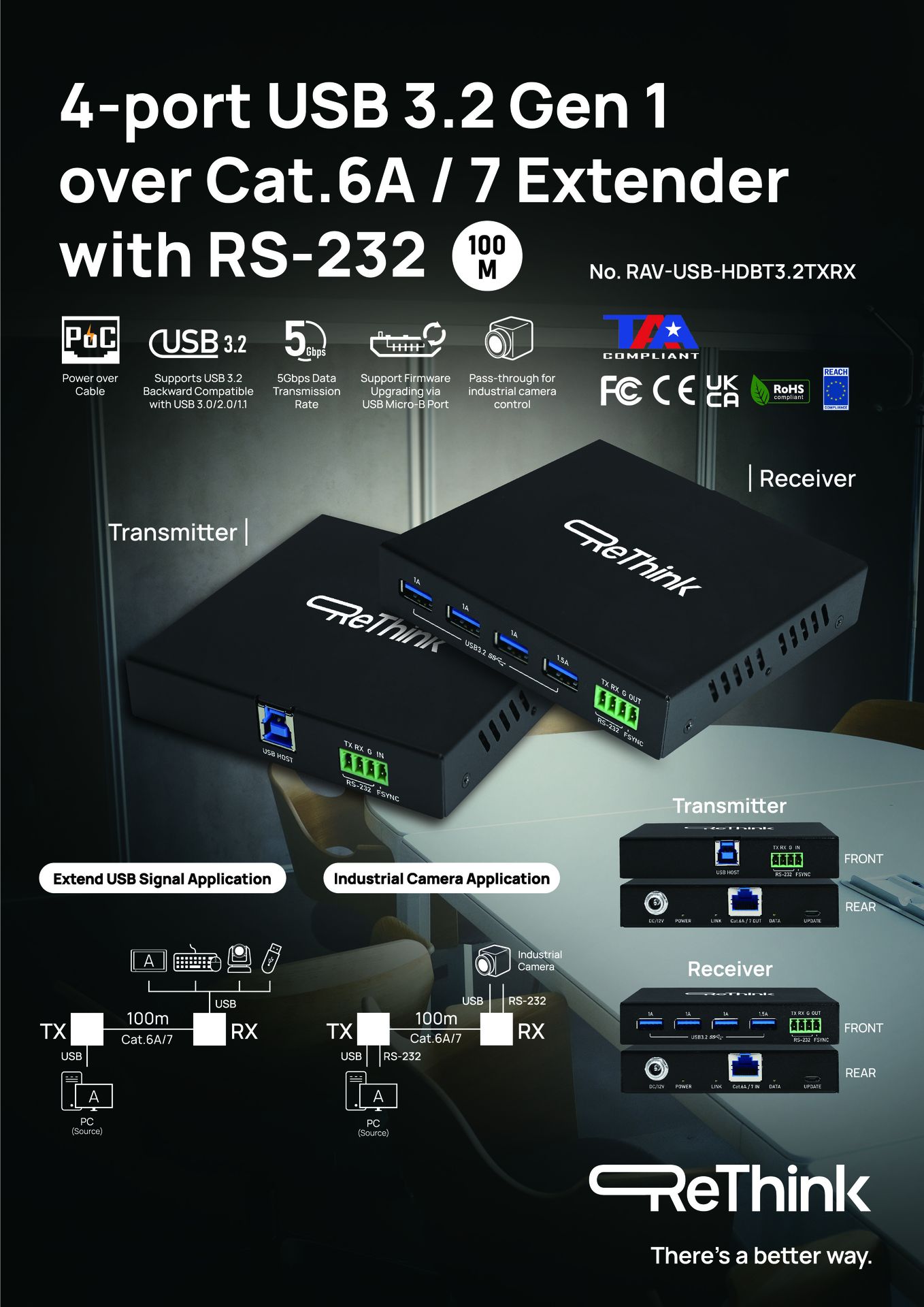

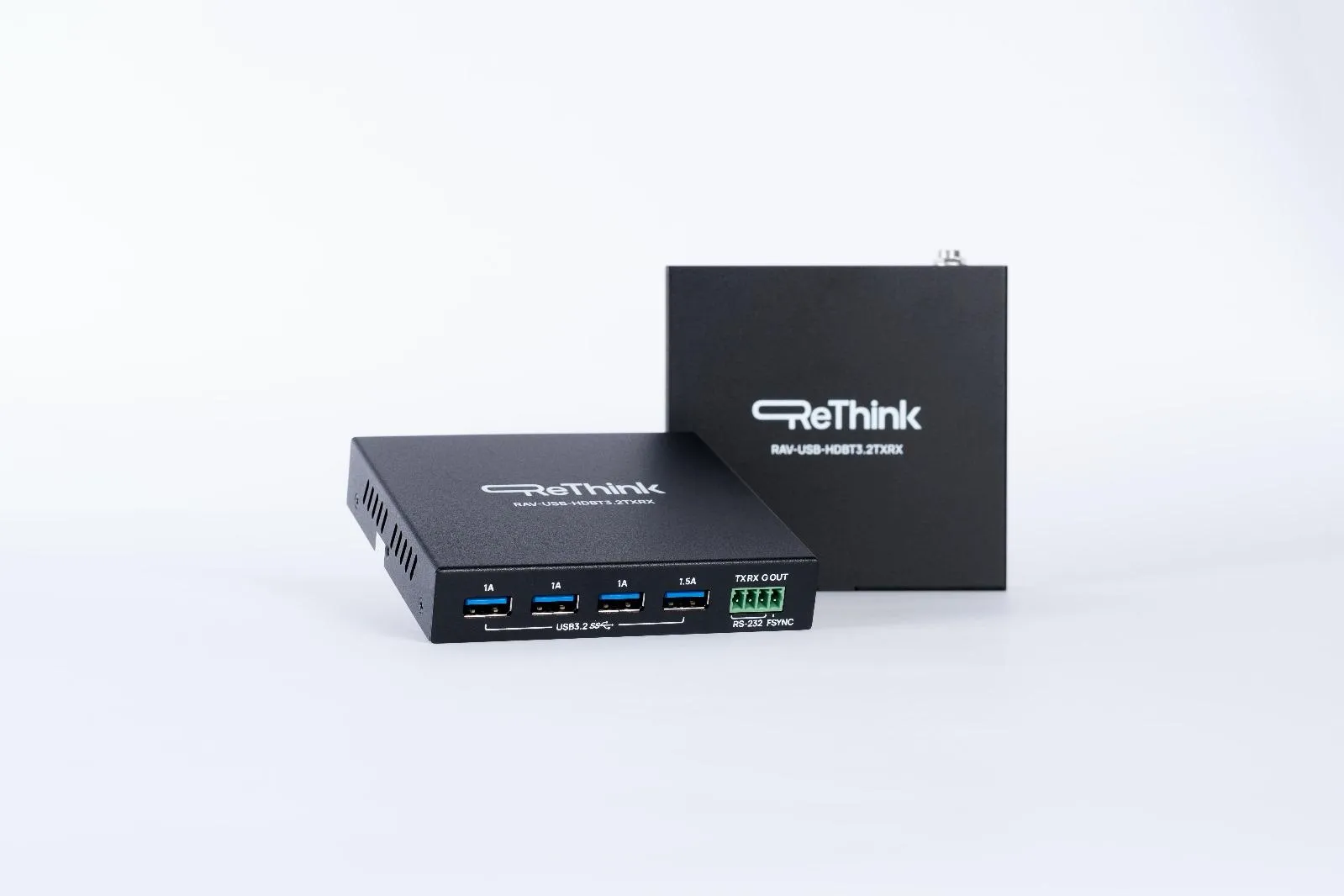

RAV-EX-UA100-Tx/Rx is a four port USB-A extender kit that transmits USB 3.2 Gen1 signals up to 100m over a single Cat6a cable.
It can be widely used to connect USB devices such as cameras, microphones, mass storage, printers, keyboard & mouse to a single computer
RAV-EX-UA100-Tx/Rx is a four port USB-A extender kit that transmits USB 3.2 Gen1 signals up to 100m over a single Cat6a cable.
The product is TAA compliant, has a maximum bandwidth of 5Gpps and can be singerly powered by the transmitter.
It supports RS-232 and FSYNC pass-through extension functions, which is suitable for industrial camera control or for transmitting RS-232 control signals to control equipment.
Supplied with a USB-A/B cable, power supply, and mounting brackets.

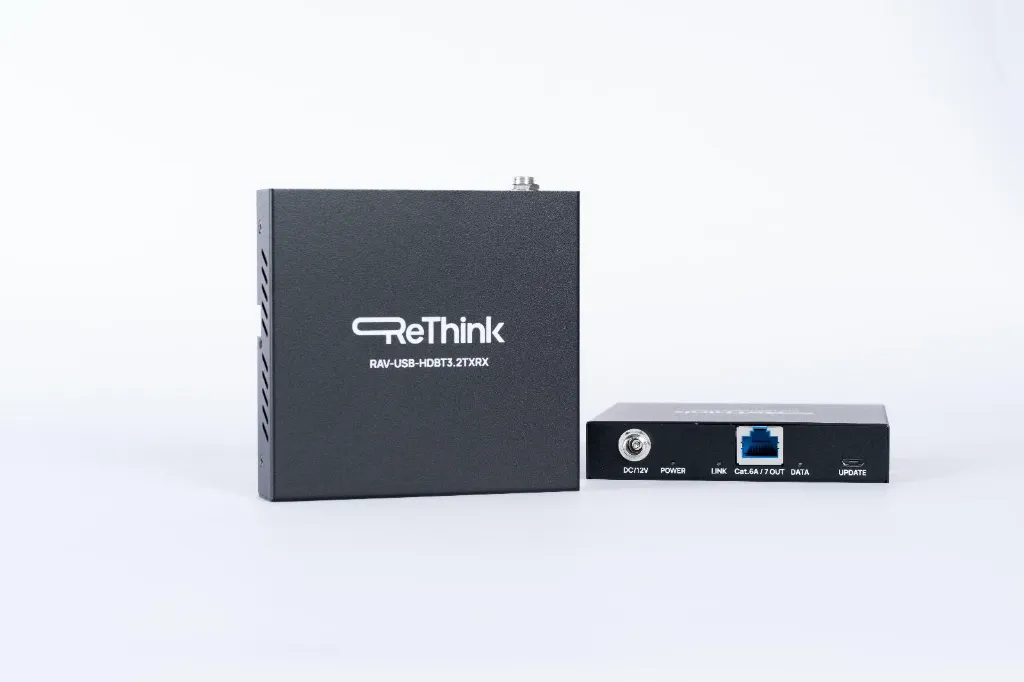

The product is formally known as RAV-USB-HDBT3.2TXRX.

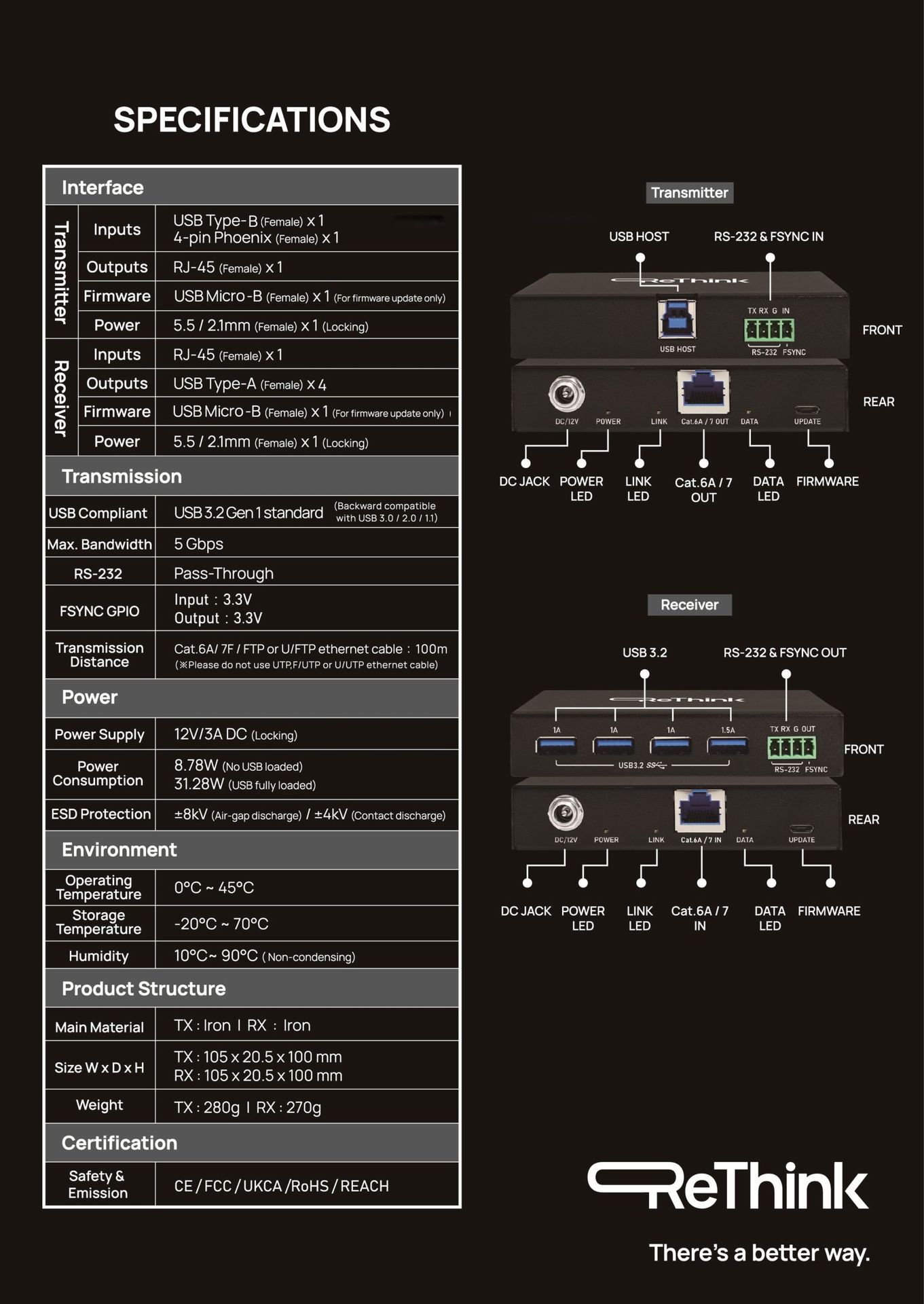

| Inputs: | Tx: 1x USB-B, 4-pin Phoenix, USB Micro-B (firmware updates), Locking DC/12v (5.5 / 2.1mm). Rx: 1x RJ-45, 4-pin Phoenix, USB Micro-B (firmware updates), Locking DC/12v (5.5 / 2.1mm). |
|---|---|
| Outputs: | Tx: 1x RJ-45. RX: 4x USB-A. |
| Signal & Bandwidth: | Up to USB 3.2 Gen 1. Backwards compatible with USB 3.0/2.0/1.1. 5Gbps maximum bandwidth. |
| Features: | RS-232 & FSYNC transmission pass-through. Plug and play (no device drivers necessary) and is compatible with multiple operating systems. Power over Cable (PoC). Powered from transmitter. Anti-static protection. |
| Country of Origin: | Taiwan |
