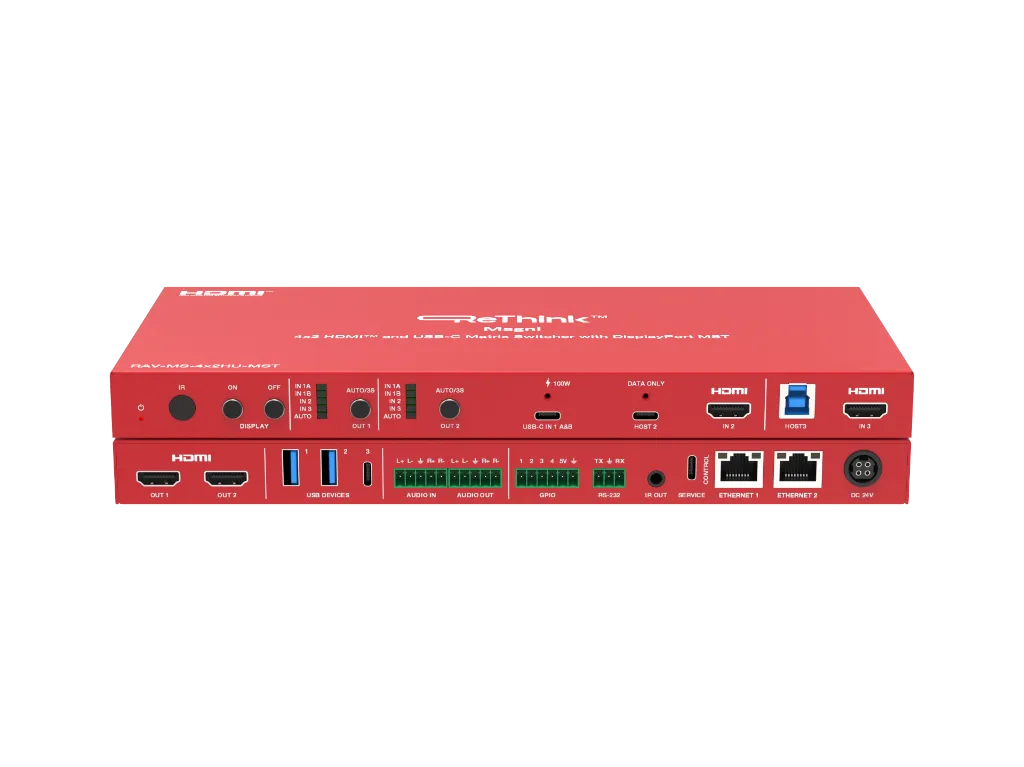

RAV-MS-4x2HU-MST is a innovative matrix solution providing Multi Stream Transport for professional AV setups. Designed to simplify connectivity in meeting rooms, classrooms, and collaborative spaces and offers seamless switching between up to four input sources and independent output to two displays.
The switcher consists of 1x USB-C input supporting MST complete with 100W charging and 2x HDMI inputs with corresponding USB pairing. Utilising USB-C & HDMI connectivity for simplified transmission of 4K video whilst providing easy host USB switching with data speeds of up to 5 Gbps.
User Manual - Coming Soon.

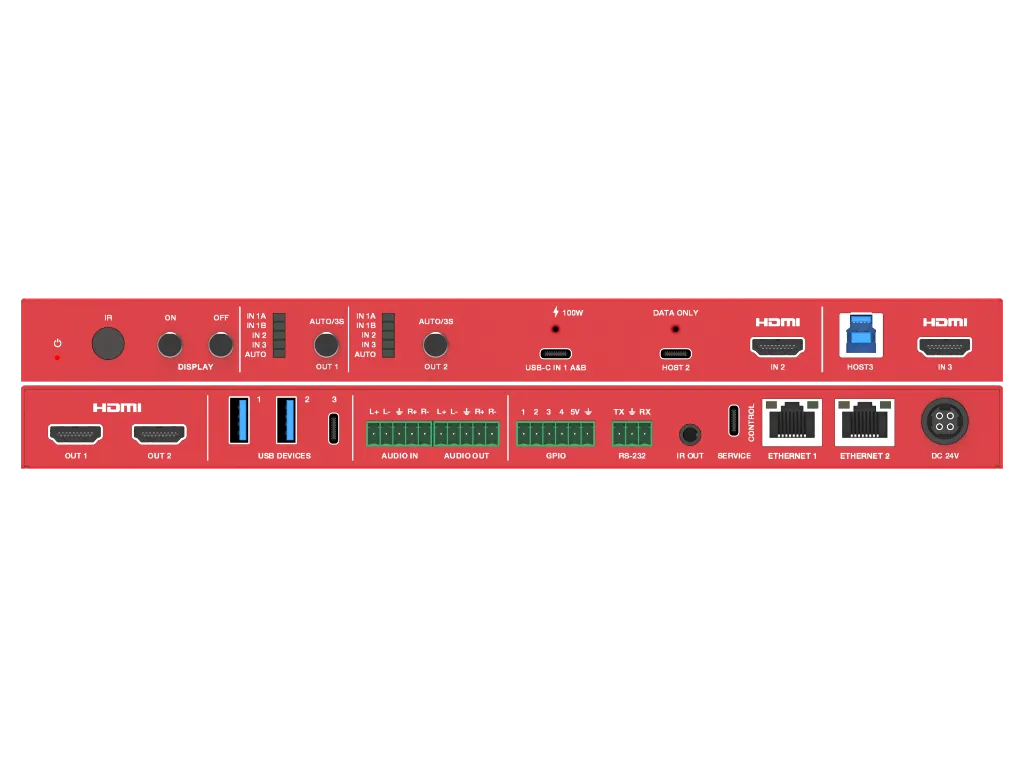

| Inputs: | 1x USB-C (MST), 2x HDMI, 1x USB-C (Host Data), 1x USB-B (3.2), 1x USB-C (Service Port), 1x IR Receiver, 1x Analogue Audio (5-Pin Phoenix), 1x DC 24V. |
|---|---|
| Outputs | 2x HDMI, 2x LAN (RJ-45), 1x IR 3.5mm, 2x USB-A (Device). 1x USB-C (Device), 1x RS-232 (3-Pin Phoenix), 1x GPIO (6-Pin Phoenix), Analogue Audio (5-Pin Phoenix). |
| Video Resolution | Up to 4K60Hz 4:4:4 |
| Features | MST - Multi Stream Transport HDCP 2.3 and DP 1.2a compliant 3×2 huddle room switcher with USB-C/HDMI™ input and HDMI™ output USB-C input with DP Alt mode up to 4K60Hz 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G ethernet and 100W charging HDMI™ input up to 4K60Hz 4:4:4, as specified in HDMI™ 2.0b Fast switching including auto and manual switching modes Auto switching supports signal detection and 5V detection USB 3.2 Gen 1 (5Gbps) host and local hub USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output Support balanced/un-balanced analogue audio embedding to USB or HDMI audio Support balanced/un-balanced analogue audio de-embedding from USB or HDMI™ audio Advanced EDID management User defined welcome screen and no signal display image Dual 1G Ethernet ports with 802.1x and VLAN IR eye for IR learning and control Auto display on/off control External device control via CEC/IR/RS-232/LAN/GPIO Control via front panel buttons, RS-232, TCP/IP and Web GUI control |
| Country of Origin: | China |
