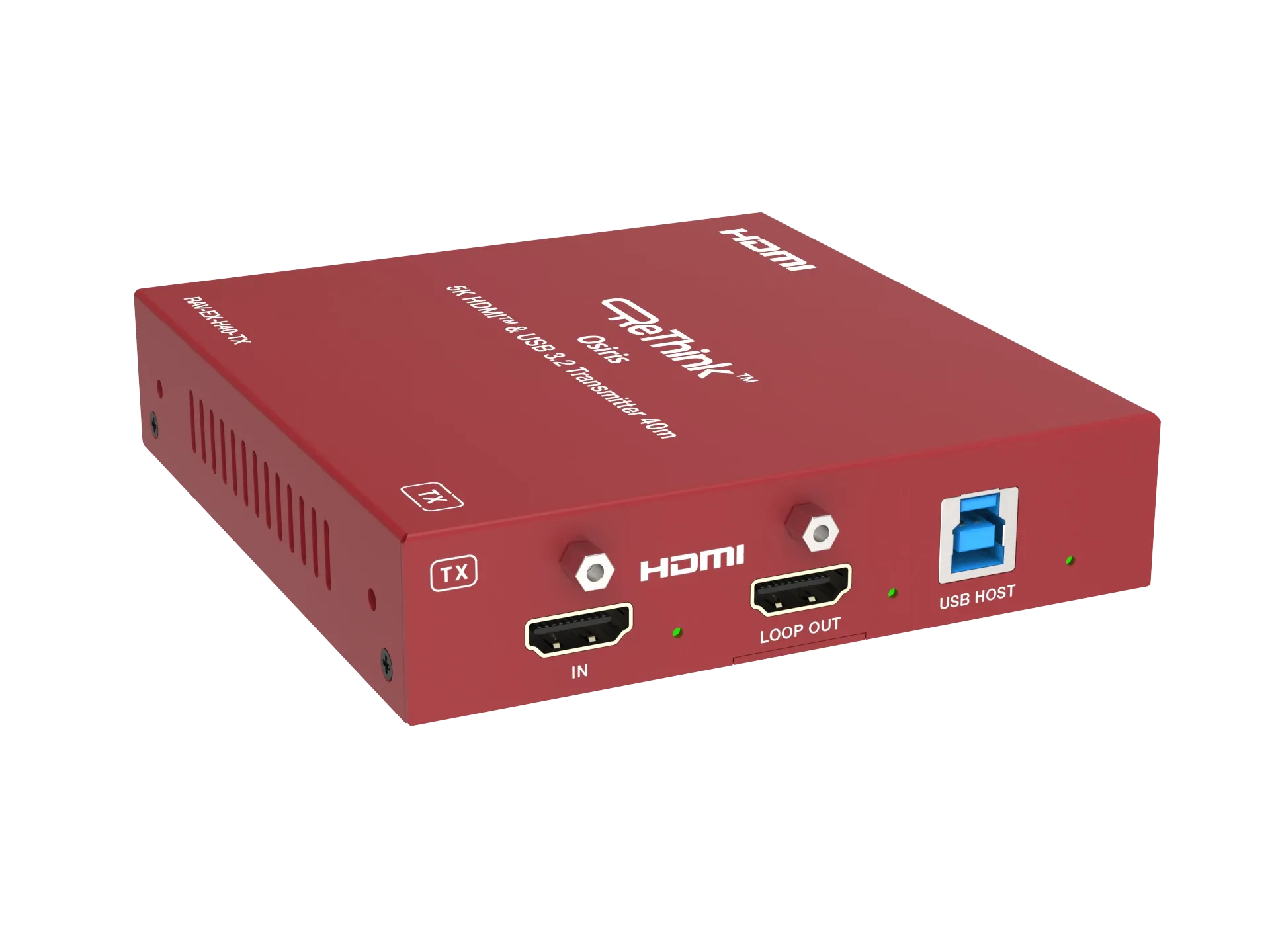

RAV-EX-H40-Tx allows HDMI video resolution of 5K combined with USB 3.2 signals to be sent up to 40m. This transmitter provides an additional HDMI loop output and when paired with the receiver provides access to three remote USB device ports allowing peripherals such as cameras, speakerphones, printers, and keyboard & mouse to be connected to the host laptop.
RAV-EX-H40-Tx is a high performance HDBaseT transmitter.
It allows transmission of HDMI video signal (Video up to 5K and USB 3.2 data) at distances of 40m via single Cat6a cable.
The device features one HDMI input and one HDMI loop output.
In addition the product supports RS-232 signal pass-through, analogue audio de-embedding and bi-directional 24V PoC (Power over Cable).

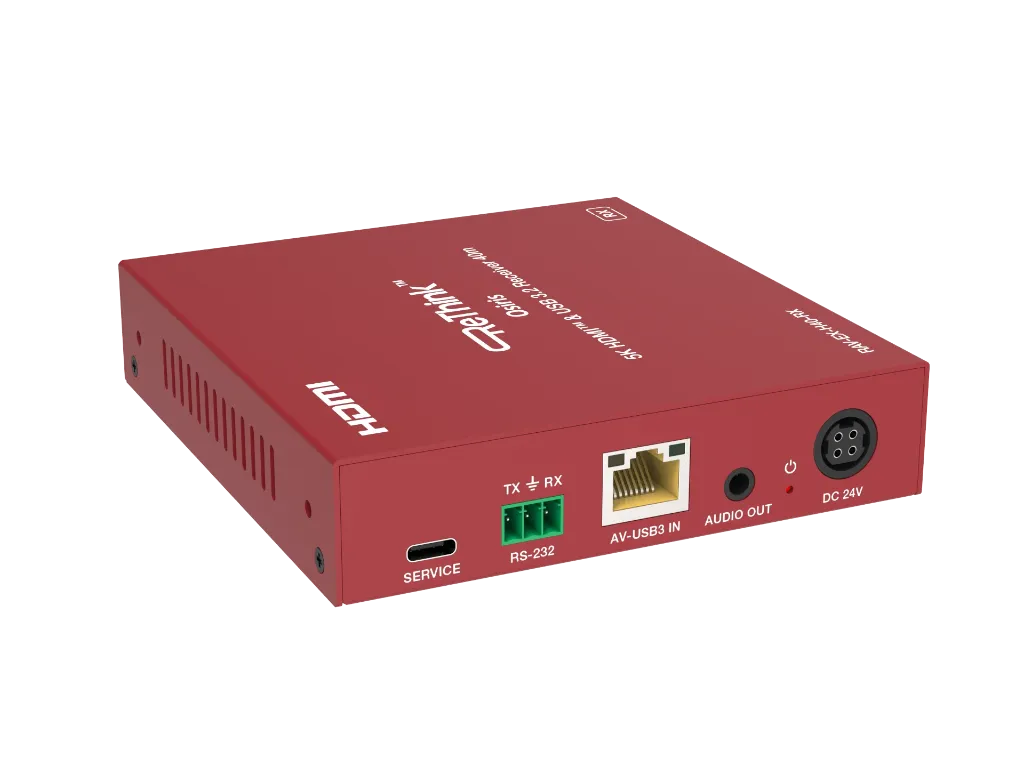

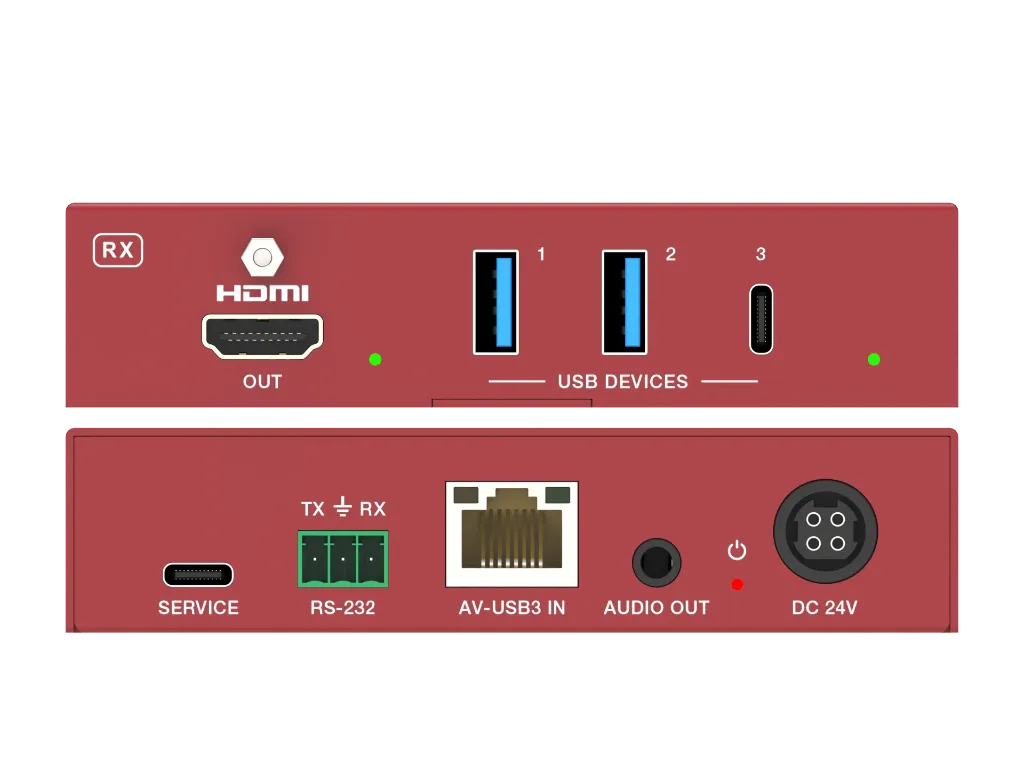

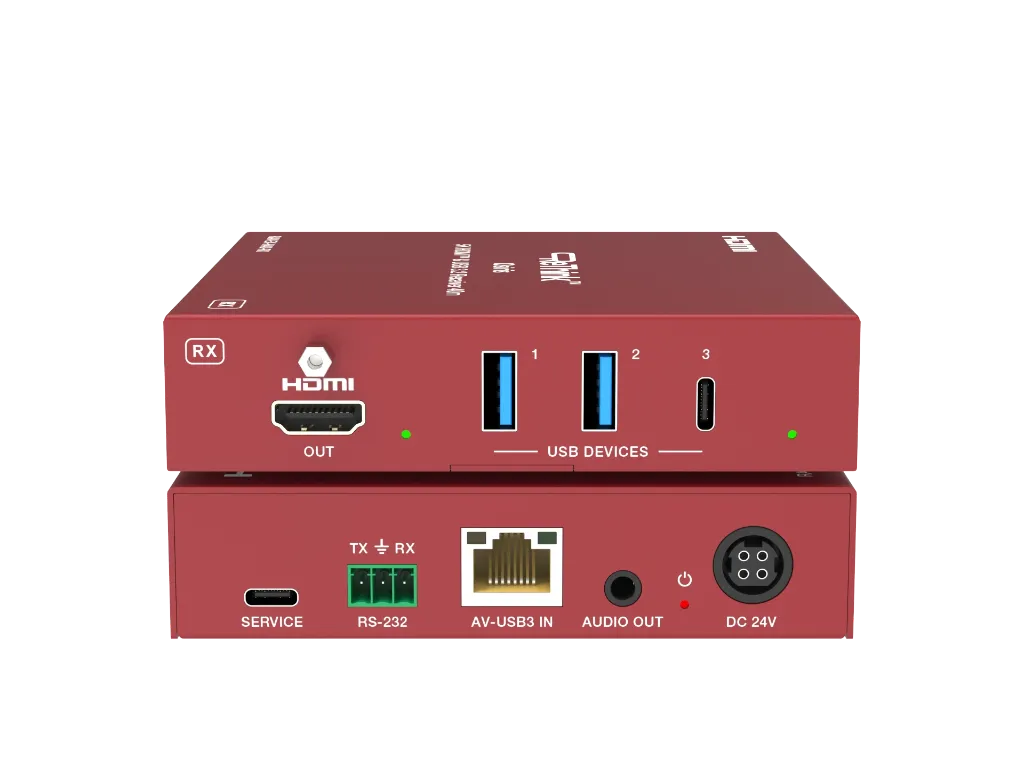

The product can be combined with the RAV-EX-U40-Rx for USB-C video output or the RAV-EX-H40-Rx for HDMI video output.
Laptops connected to the transmitter can access peripherals connected to the 3x USB ports from either receiver.
Application Diagram.jpg
| Inputs: | 1x HDMI, 1x USB-B (data), 1x 24V PoC, 1x RS-232 3-pin connector. |
|---|---|
| Outputs: | 1x HDMI loop, 1× 3.5mm audio jack, 1× HDBaseT RJ45 connector. |
| Features: | • 5K HDMI and USB3.2 extender with USB-C input. • Extended distance is up to 40m/130ft for 4K signal, 35m/115ft for 5K signal via a single CAT6a cable. • HDCP 2.3 compliant, to create a secure connection between the source and display. • Supports USB 3.2 Gen 1 with data transfer rate up to 2.5 Gbps. • Features one HDMI™ input, one HDMI™ loop out and one USB 3.2 upstream port. • Analogue audio de-embedding. • RS-232 pass-through. • HDR,HDR10+,DolbyVisionLLMandHLGpass-through. • Bi-directional 24V PoC (power over cable), when TX or RX gets power, the other end does not need an external power supply. |
| Country of Origin: | China |
