RAV-EX-U40-Rx receives video resolution of 5K combined with USB 3.2 signals up to distances of 40m. This receiver is a USB-C video output receiver accommodating 3x USB 3.2 Ports allowing peripherals such as cameras, speakerphones, printers, and keyboard & mouse to be connected to the host laptop through the paired Transmitter.
RAV-EX-U40-Rx is a high performance HDBaseT receiver for the transmission of full USB-C signal (Video up to 5K and USB 3.2 data) at distances of 40m via single Cat6a cable.
The unit features a single USB-C output with
DisplayPort Alt mode standards (v1.4a) A/V and USB 3.2 Gen 1 data and three USB 3.2 downstream ports.
In addition the product supports RS-232 signal pass-through, analogue audio de-embedding and bi-directional 24V PoC (Power over Cable).
The product can be combined with the RAV-EX-U40-Tx for USB-C video input or the RAV-EX-H40-Tx for HDMI video input.
Laptops connected to the transmitter can access peripherals connected to the 3x USB ports from either receiver.
User Manual.pdf
API Commands Guide.pdf
Application Diagram.jpg

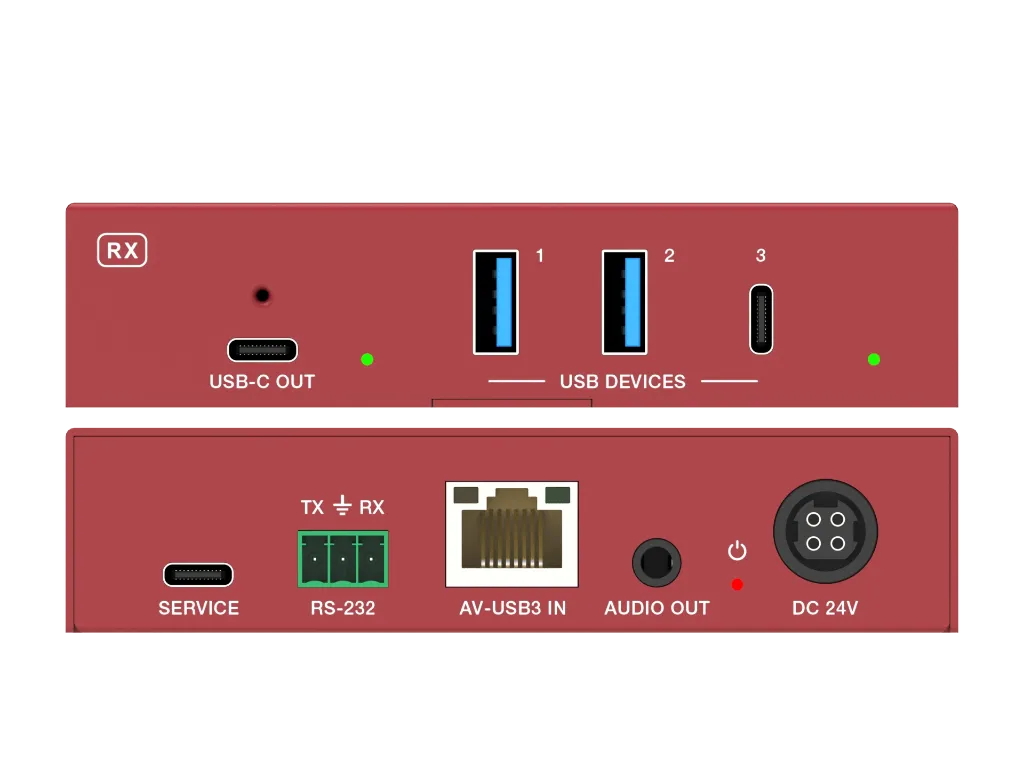

| Inputs: | 1× HDBaseT RJ45 connector, 1x USB-C (data), 2x USB-A (data), 1x 24V PoC, |
|---|---|
| Outputs: | 1x USB-C,, 1× 3.5mm audio jack, |
| Features: | • 5K full USB-C and USB3.2 extender with USB-C output. • Extended distance is up to 40m/130ft for 4K signal, 35m/115ft for 5K signal via a single CAT6a cable. • Compliant with VESA DisplayPort 1.4a. • HDCP 2.3 compliant, to create a secure connection between the source and display. • Supports USB 3.2 Gen 1 with data transfer rate up to 2.5 Gbps. • Features one full USB-C output, supporting DP Alt mode standards. • Analogue audio de-embedding. • RS-232 pass-through. • Bi-directional 24V PoC (power over cable), when TX or RX gets power, the other end does not need an external power supply. |
| Country of Origin: | China |
