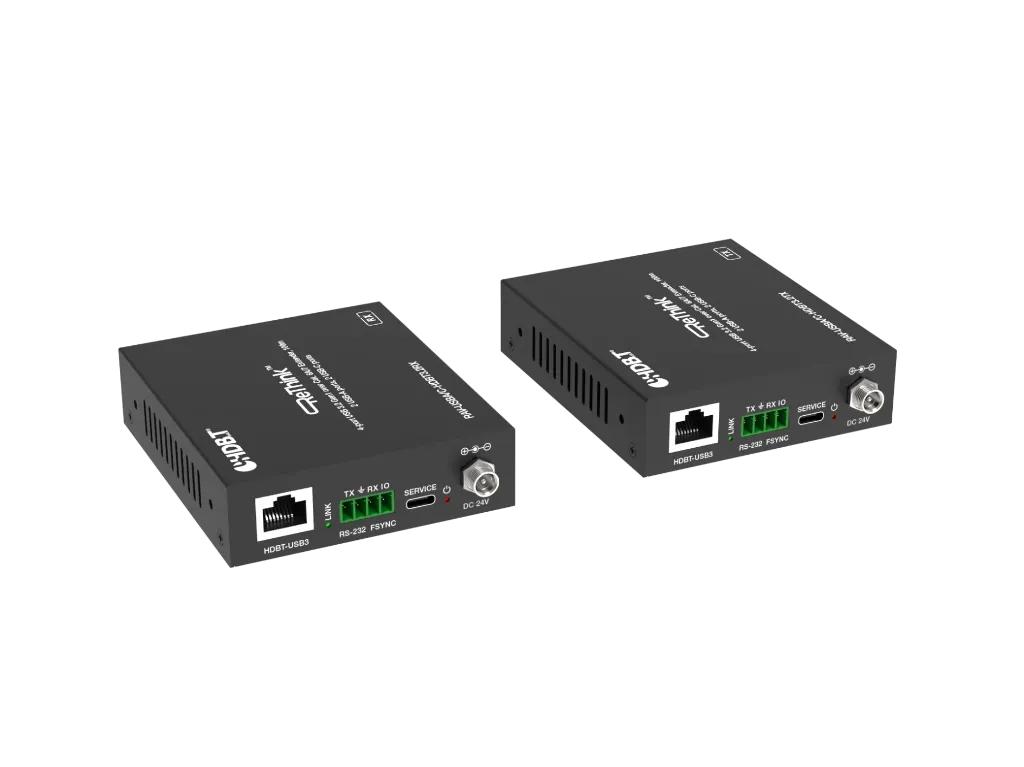

RAV-EX-UAC100-TxRx is a USB extender that can transmit USB 3.2 Gen1 signals over Cat6a/7 up to 100 metres, supporting data transfer rates up to 5Gbps.

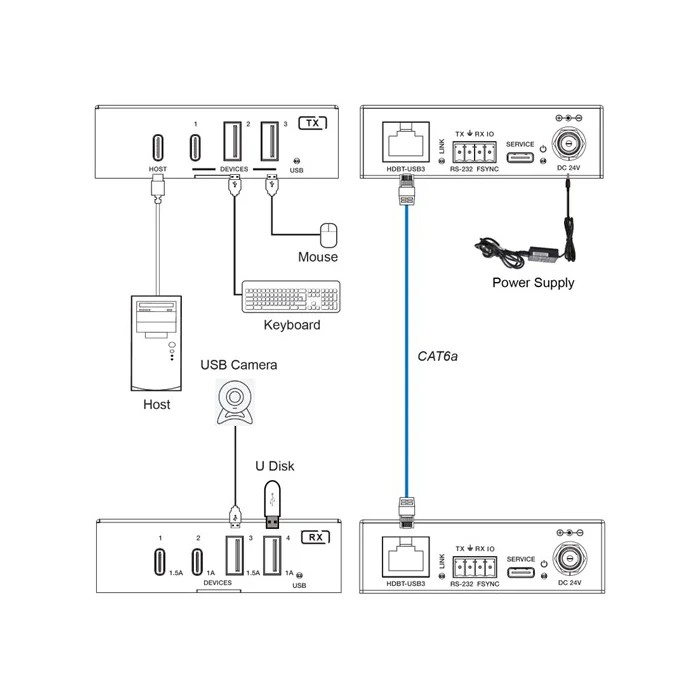

It can be widely used to connect USB devices such as cameras, microphones, mass storage, printers, keyboard & mouse to a single computer.

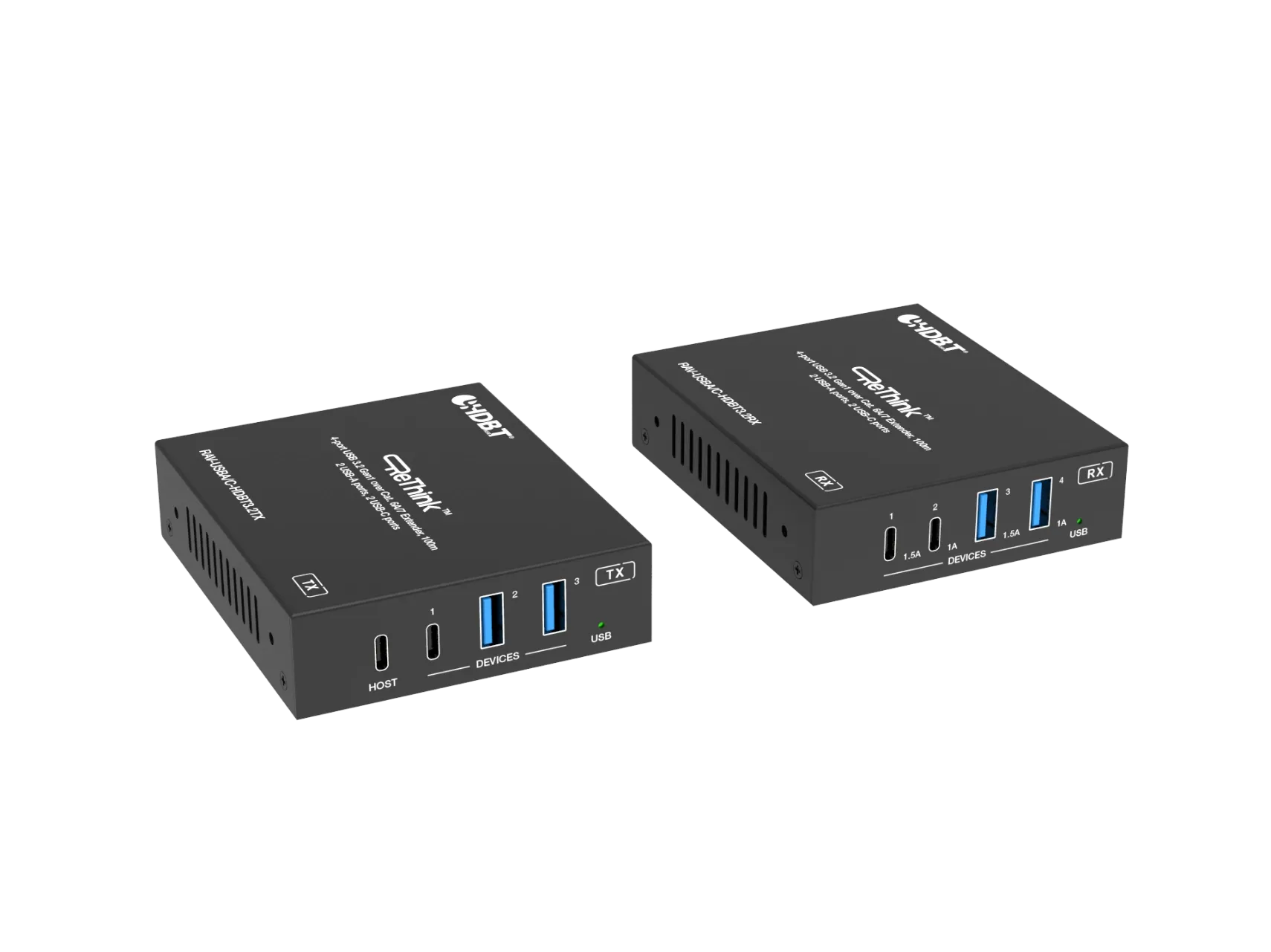

RAV-EX-UAC100-TxRx is a USB extender that can transmit USB 3.2 Gen1 signals over Cat6a/7 up to 100 metres, supporting data transfer rates up to 5Gbps.The transmitter features one USB-C port for the USB host device and 1x USB-A & 2x USB-C device ports. The receiver has 2x USB-A & 2x USB-C device ports.
The devices supports bi-directional PoC allowing the device to be powered from the transmitter or receiver.
Supplied with power supply, and mounting brackets.

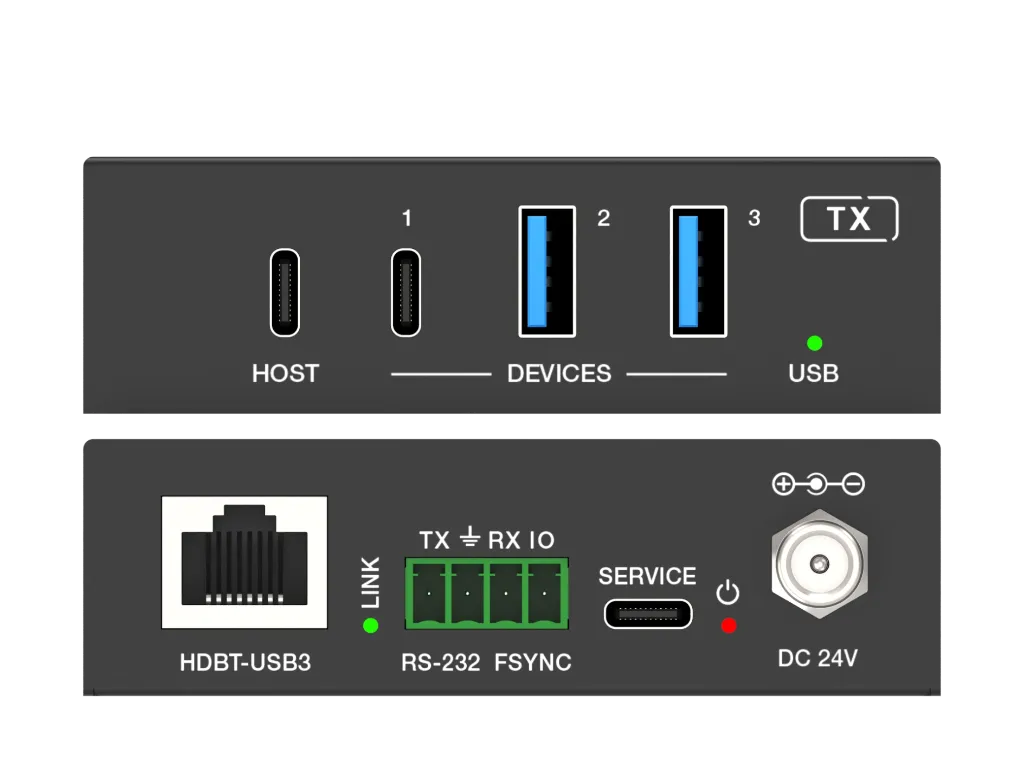

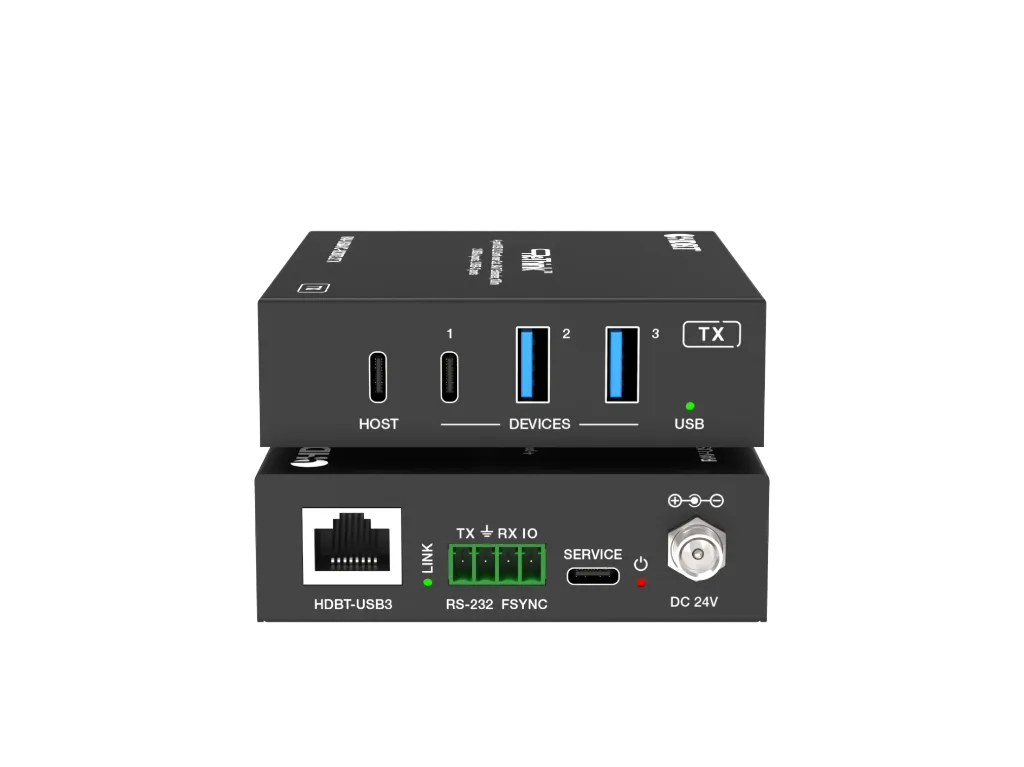

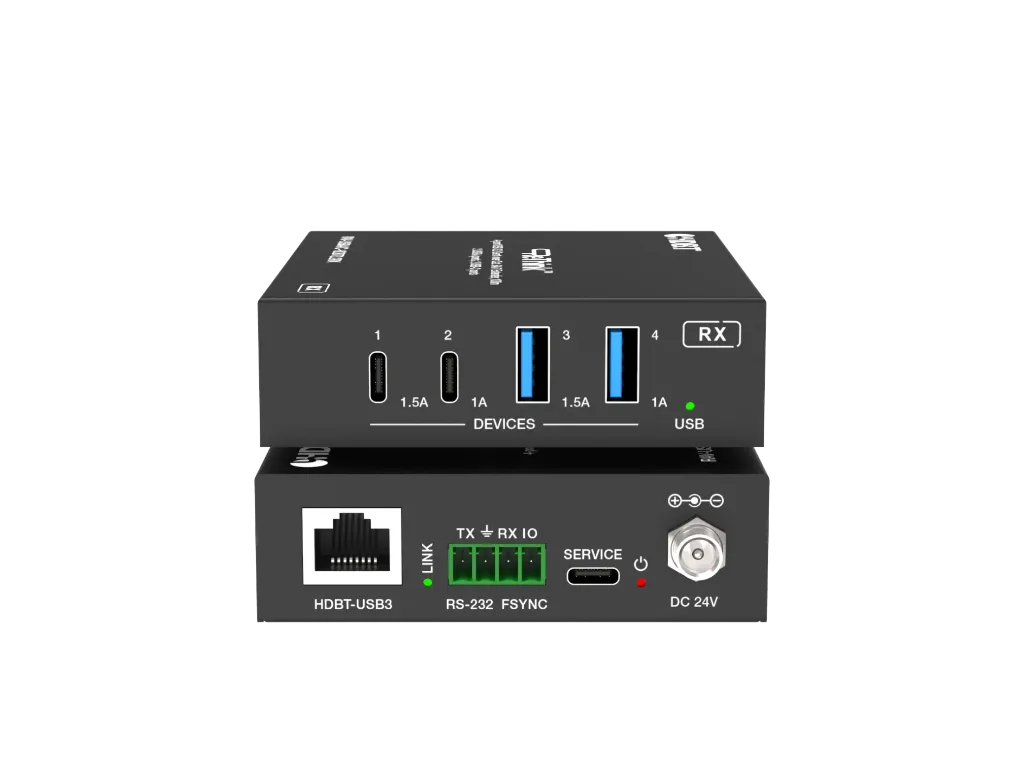

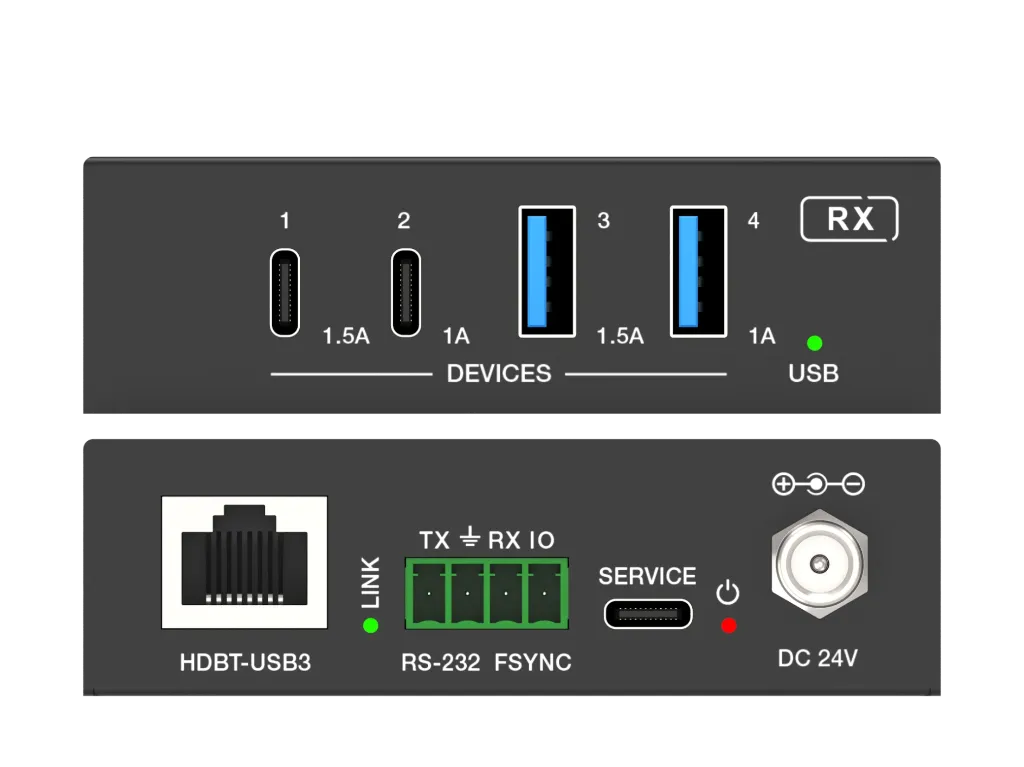

| Inputs: | Tx: 1x USB-C host, 4-pin Phoenix, USB Micro-B (firmware updates), Locking DC/12V (5.5 / 2.1mm). Rx: 1x RJ-45, 4-pin Phoenix, USB Micro-B (firmware updates), Locking DC/12V (5.5 / 2.1mm). |
|---|---|
| Outputs: | Tx: 1x USB-C, 2x USB-A 1x RJ-45. Rx: 2x USB-C, 2x USB-A, |
| Signal and Bandwidth: | Up to USB 3.2 Gen1. Backwards compatible with USB 3.0 / 2.0 / 1.1. 5Gbps maximum bandwidth. |
| Features: | Bi-directional PoC (Power over cable) RS-232 & FSYNC transmission pass-through. Hardware acceleration for isochronous and bulk transfer. Plug and Play (no device drivers necessary) and is compatible with multiple operating systems. |
| Country of Origin: | China |
