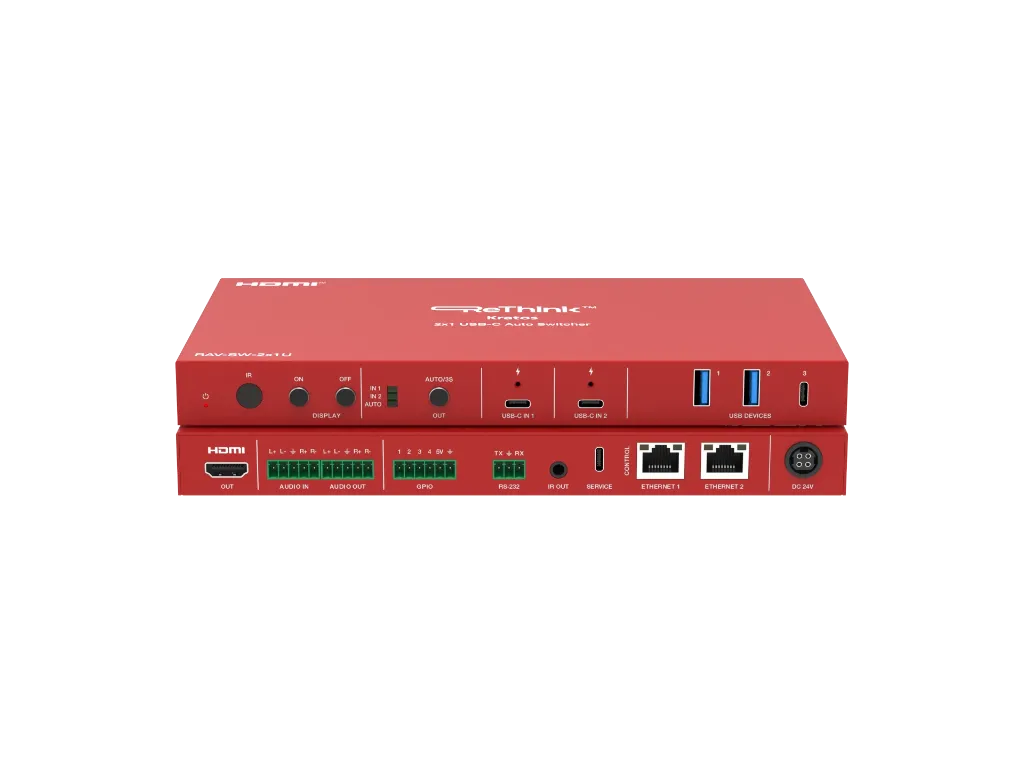

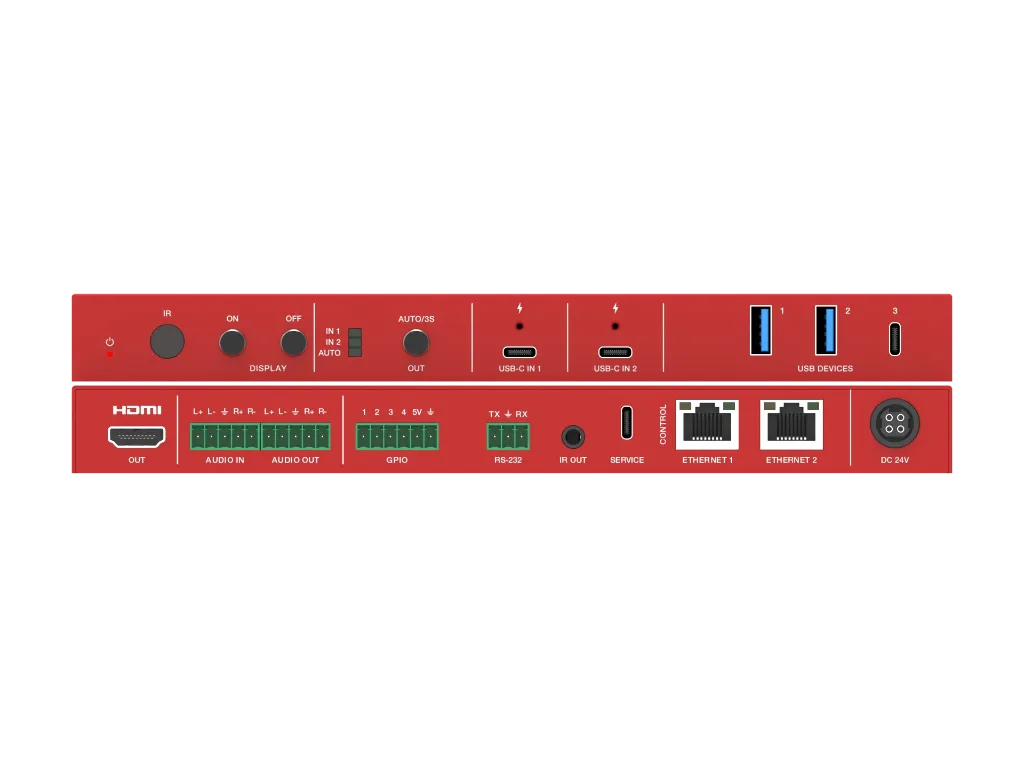

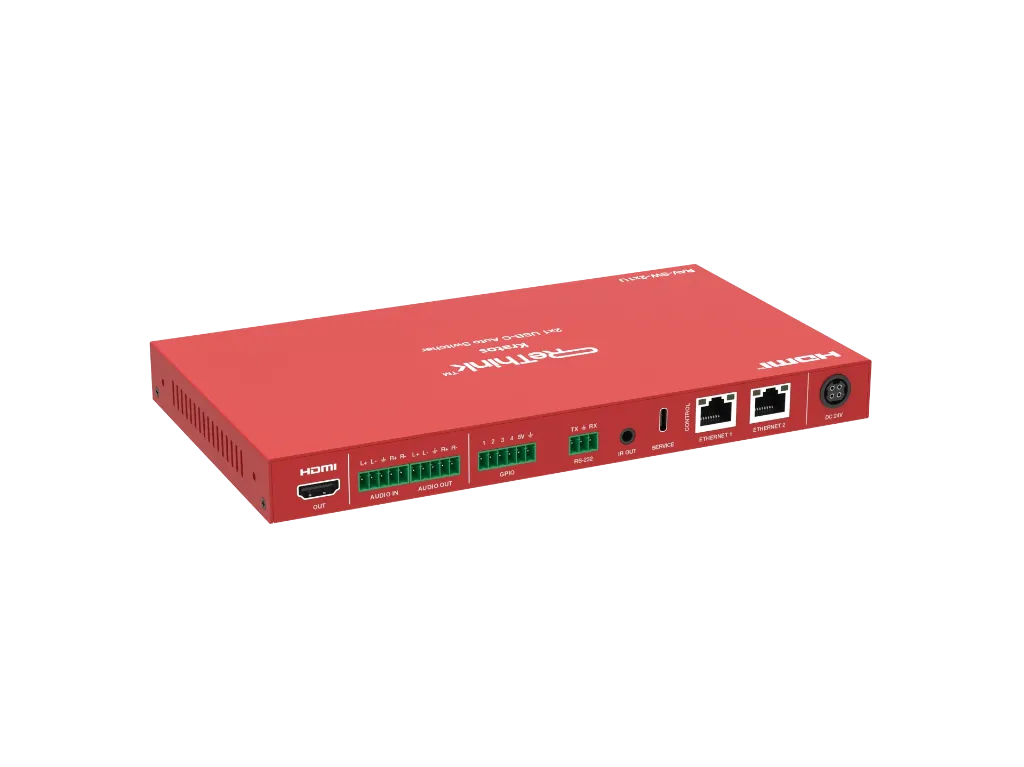

RAV-SW-2x1U

RAV-SW-2x1U is is at professional auto switcher with 2x USB-C inputs which accommodate sharing of three USB devices between two switchable hosts.

Designed to be cost effective, RAV-SW-2x1U along with a sister product, the RAV-SW-2x1HU which provides 1x USB-C and 1x HDMI+USB ports, allow choice of inputs ideal for huddle spaces and small meeting rooms.

For low maintenance rooms, the switching operation can be accomplished automatically or by IR and front panel operation. Controlled rooms can utilise the device’s RS-232 port, dual Ethernet ports and CEC / GPIO events.

With a dual USB-C ports providing up to 100W Power Delivery, it ensures efficient power and connectivity.


USB-C 100W
£ 0.00 £ 0.00
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

RAV-SW-2x1U
USB-C & HDMI Auto Switcher

RAV-SW-2x1U is a professional dual USB-C and Auto Switcher that enables seamless switching between two hosts; both on USB-C.
Effortlessly switch three USB peripherals and one display between the two hosts.
Compatible switching uses include a room PC with laptop, a wireless solution with laptop or simply 2x BYOM devices.
Switching operation can be accomplished automatically upon connection of a laptop, TCP/IP, RS-232 and front panel push button.
It can be widely used for sharing USB devices facilitating video conferencing, keyboard & mouse devices, touch panel displays and other USB devices.
Advanced features such as Dual Ethernet ports, USB-C charging, CEC and EDID management are included.

Additional Information & Resources

Inputs:

2x USB-C Host, 2x 1Gb Ethernet, 1x RS-232 3pin-3.5mm phoenix, 3x USB-A 3.2, 1x USB-C (Data only) 1x DC port.

Outputs:

1x HDMI, 1x 3.5mm (line level), 1x 3.5mm IR extension.

Features:

• Input up to 4K60Hz 4:4:4, as specified in HDMI™ 2.0b.

• Fast switching including auto and manual switching.

• Auto switching supports signal detection and 5V detection.

• USB 3.2 Gen 1 (5Gbps) host and local hub.

• USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output.

• Support balanced/un-balanced analogue audio embedding to USB or HDMI audio.

• Support balanced/un-balanced analogue audio de-embedding from USB-C.

• User defined welcome screen and no signal display image.

• Dual 1G Ethernet ports with 802.1x and VLAN.

• IR eye for IR learning and control.

• Auto display on/off control.

• External device control via CEC/IR/RS-232/LAN/GPIO.

• Control via front panel buttons, RS-232, TCP/IP and Web GUI control.

• USB-C with 100W power delivery.

• Ethernet over USB-C.

Country of Origin:

Taiwan (TAA) or China.
