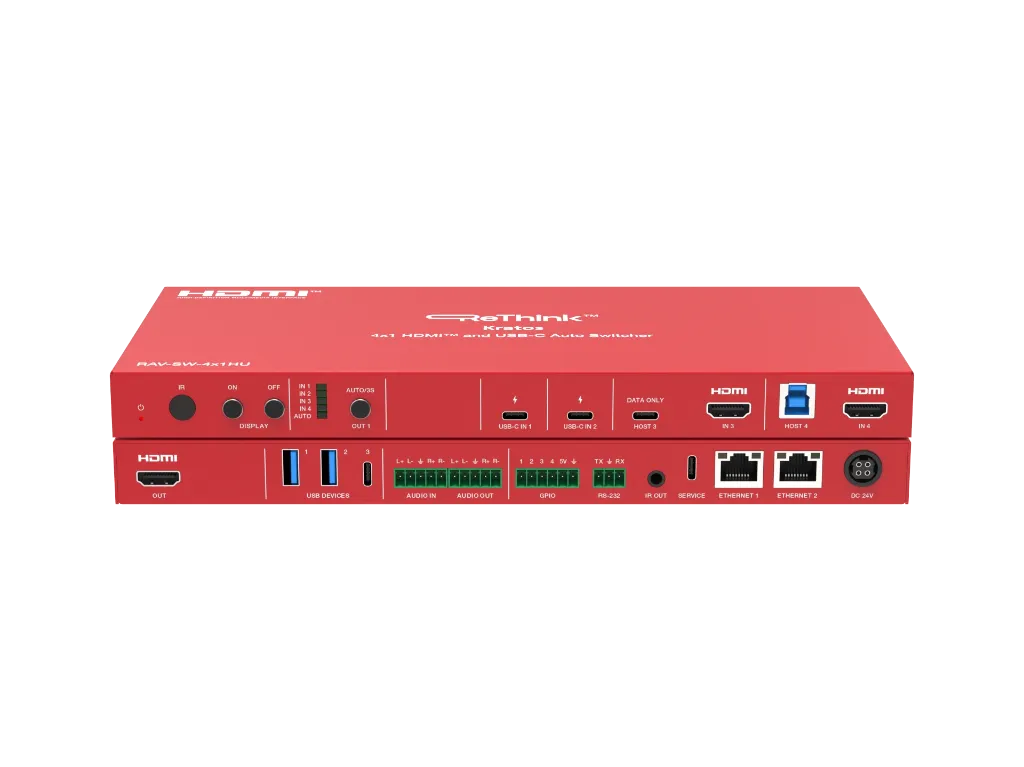

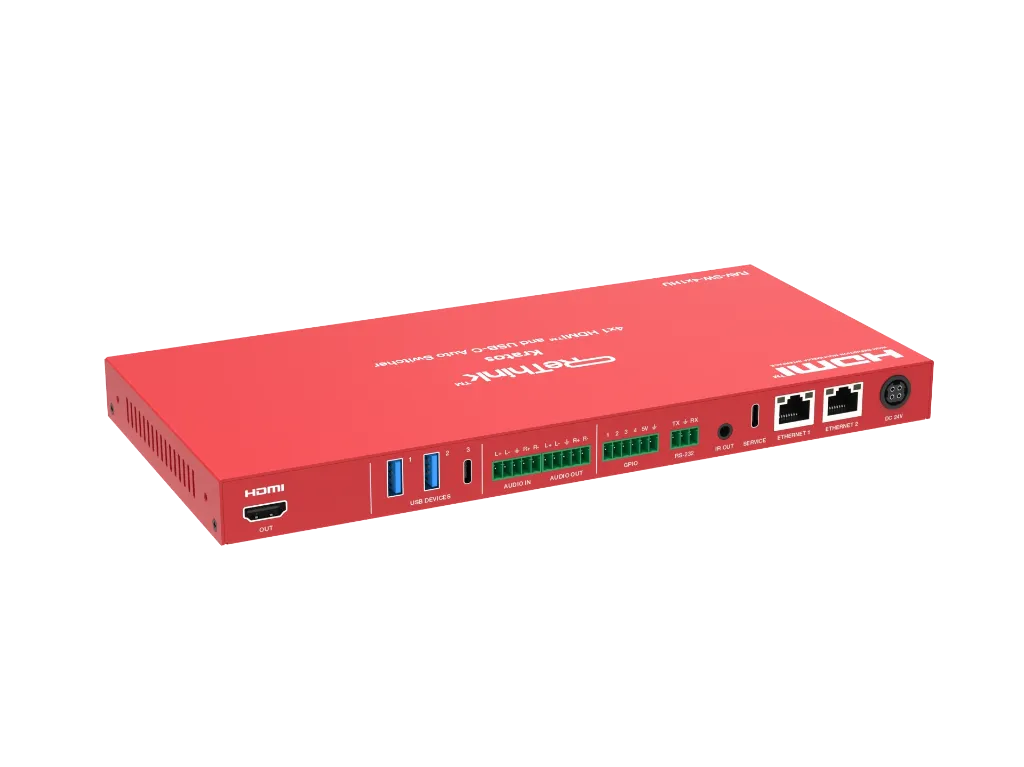

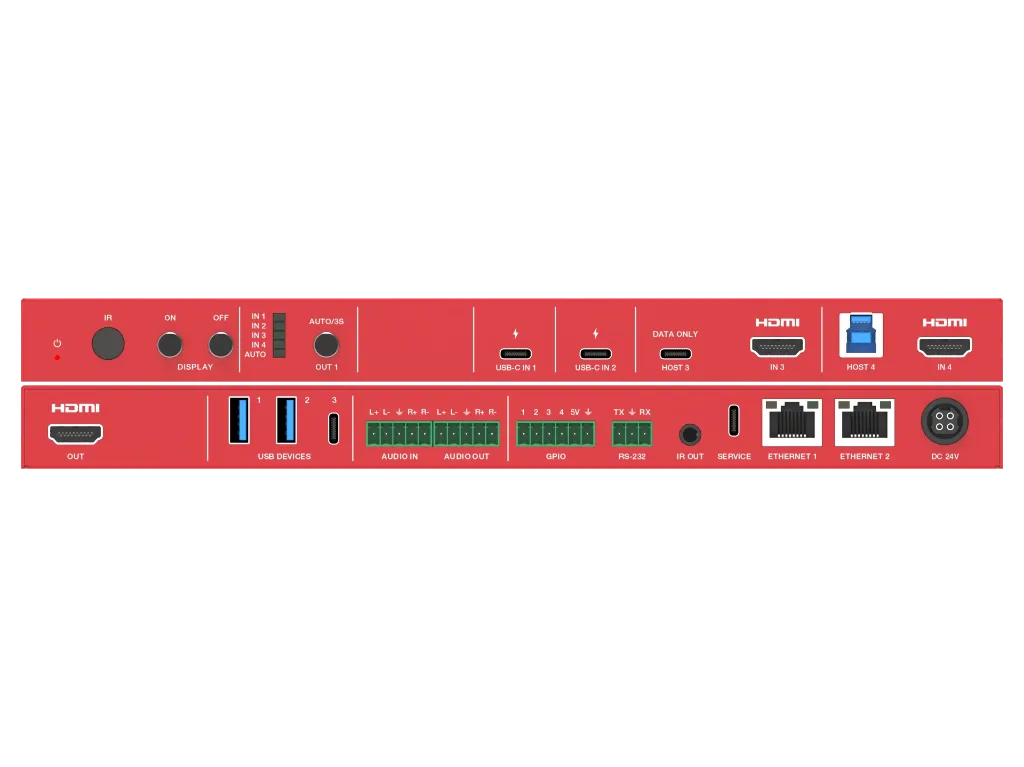

RAV-SW-4x1HU

RAV-SW-4x1HU is is at professional auto switcher with 2x USB-C & 2x HDMI inputs which accommodates sharing of three USB devices between the four switchable hosts.
The two USB-C ports provide up to 100W Power Delivery, it ensures efficient power and connectivity.

Switching operation can be accomplished automatically or by IR and front panel operation. Controlled rooms can utilise the device’s RS-232 port, dual Ethernet ports and CEC / GPIO events.

HDMI USB-C 100W
£ 0.00 £ 0.00
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
RAV-SW-4x1HU
2x USB-C & 2x HDMI Auto Switcher

RAV-SW-4x1HU is a 4-input USB-C & HDMI Auto Switcher that enables seamless switching between fours hosts; 2 on USB-C & 2 on HDMI.
Effortlessly switch three USB peripherals and one display between the four hosts.
Compatible switching uses include room PC's, laptops,  wireless presentation or other computing host.
Switching operation can be accomplished automatically upon connection of a laptop, TCP/IP, RS-232 and front panel push button.
It can be widely used for sharing USB devices facilitating video conferencing, keyboard & mouse devices, touch panel displays and other USB devices.
Advanced features such as Dual Ethernet ports, USB-C charging, CEC and EDID management are included.




Additional Information & Resources

Inputs:

2x USB-C Host, 2x HDMI, 2x 1Gb Ethernet, 1x RS-232 3pin-3.5mm phoenix, 3x USB-A 3.2, 1x USB-C (Data only) 1x DC port.

Outputs:

1x HDMI, 1x 3.5mm (line level), 1x 3.5mm IR extension.

Features:

• Input up to 4K60Hz 4:4:4, as specified in HDMI™ 2.0b.

• Fast switching including auto and manual switching.

• Auto switching supports signal detection and 5V detection.

• USB 3.2 Gen 1 (5Gbps) host and local hub.

• USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output.

• Support balanced/un-balanced analogue audio embedding to USB or HDMI audio.

• Support balanced/un-balanced analogue audio de-embedding from USB-C.

• User defined welcome screen and no signal display image.

• Dual 1G Ethernet ports with 802.1x and VLAN.

• IR eye for IR learning and control.

• Auto display on/off control.

• External device control via CEC/IR/RS-232/LAN/GPIO.

• Control via front panel buttons, RS-232, TCP/IP and Web GUI control.

• USB-C with 100W power delivery.

• Ethernet over USB-C.

Country of Origin:

TChina.
